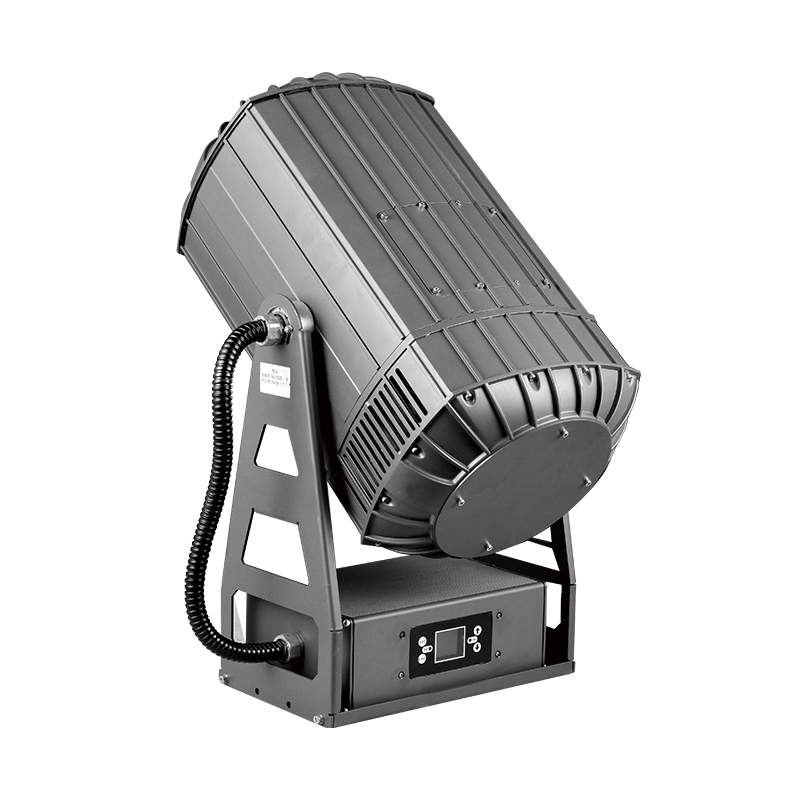

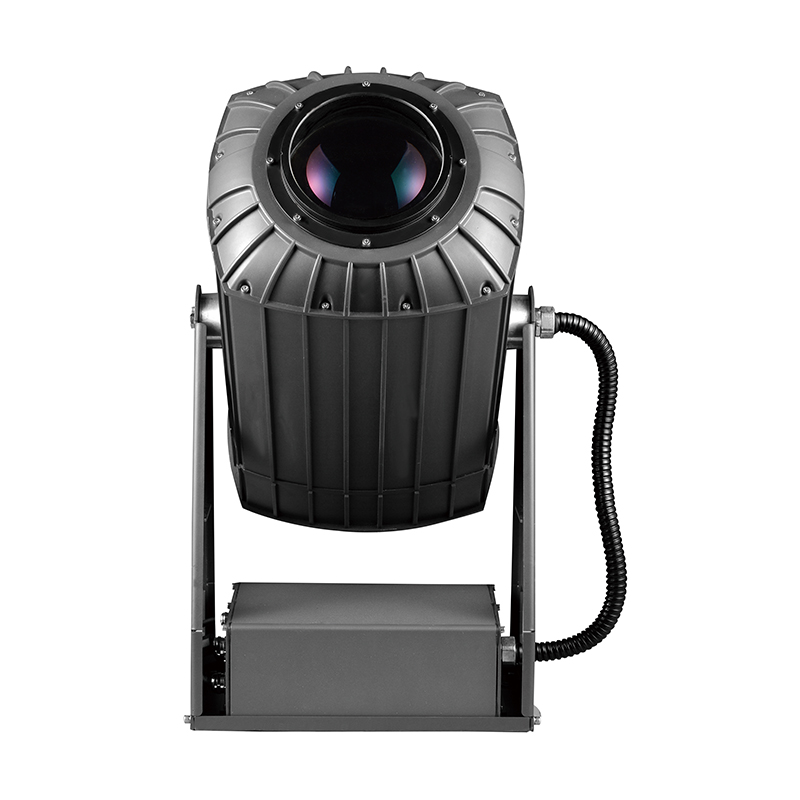

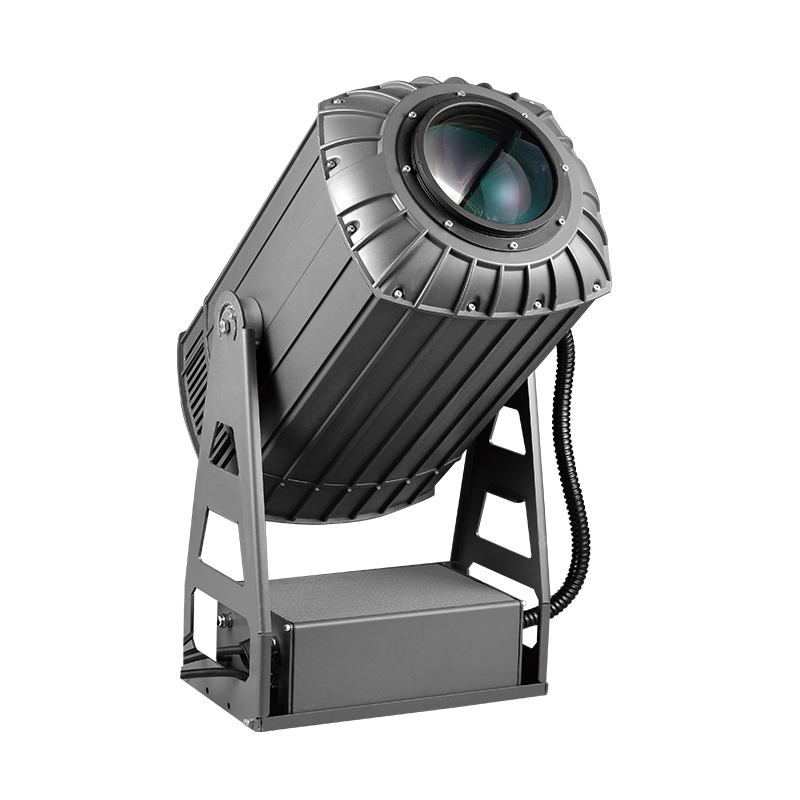

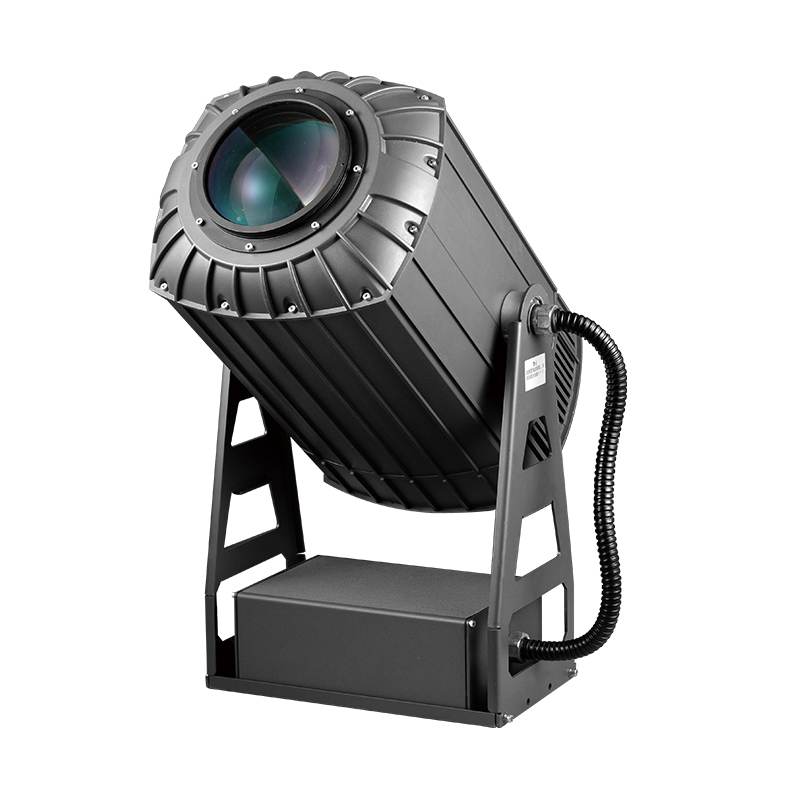

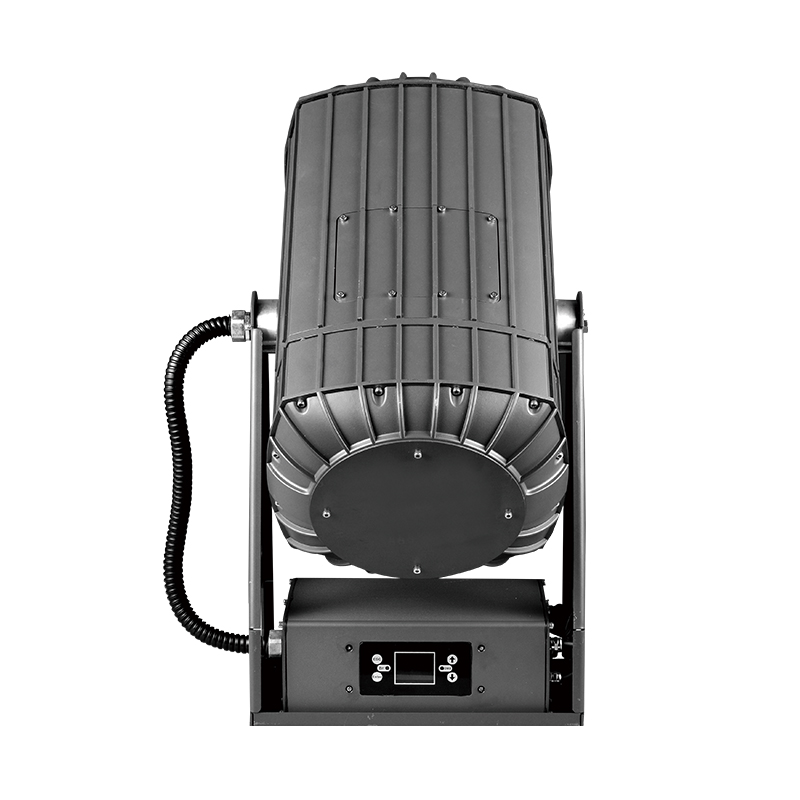

1000W Outdoor LED Zoom Gobo Projector

Mizar 1000-W-Z-S

The 1000W Outdoor LED Zoom Gobo Projector is a high-performance lighting fixture designed for large-scale outdoor projection and architectural lighting. Featuring a powerful 1000W white LED with a color temperature of 6600K and a lifespan of 20,000 hours, it delivers exceptional brightness and clarity for long-term use.



With a wide 5°–50° linear electronic zoom and motorized focus, this projector offers flexible beam control for both narrow and wide-angle projection needs. It includes a rotating gobo wheel with 6 or 7 interchangeable glass gobos, enabling vivid and dynamic image projection with shake and bi-directional rotation effects.



The unit also features 6 dichroic colors, full indexing, and a bi-directional rainbow effect, alongside smooth 0–100% dimming, and variable 0–25Hz strobe with pulse and random modes. Multiple control modes such as DMX, Auto, Sound, and Scene, along with a user-friendly 180° reversible LCD display, provide easy operation and integration.



Built with a durable IP65-rated aluminum alloy housing and an advanced heat pipe cooling system, this fixture is ideal for permanent outdoor installations in city landmarks, theme parks, cultural events, and architectural lighting projects. Black, gray, or custom body colors are available to suit different design requirements.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE

    • Light Source: 1000W Color WhiteLED
    • Color Temperature: 6600K
    • Average LED Life:20,000 Hour

    POWER

    • Input Voltage: 100-240VAC, 50/60Hz
    • Power Consumption:1200W

    OPTICAL SYSTEM

    • Zoom: 5° – 50° linear electronic
    • Focus: Motorized linear focus
    • Strobe: 0-25Hz variable speed, pulse and random strobe
    • Dimmer: 0-100% variable linear dimming curves

    COLORS

    • 6 Dichoric Colorsplus open, Index / Bi-directional rotating rainbow effect

    ROTATING GOBOS

    • 1 rotation gobo wheelwith 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
    • Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
    • Glass gobo outside Φ28mm, insideΦ22mm

    CONTROL&CONNECTION

    • DMX Channel: 10CH
    • Control Mode:DMX, Auto 1, Auto 2, Sound, Scene
    • Full Color 180° Reversible LCD
    • DMX In/Out: 3-pin waterproof Male/Female signal cable
    • PowerIn/Out: 3 pin waterproof Male/Female power cable

    PHYSICAL

    • Protection Rate: IP65
    • Body Finish: Aluminum alloy shellwith high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
    • Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminanceand delay its life greatly

    WEIGHT&DIMENSION

    • Net Weight: 26.05kg
    • Gross Weight:28.50kg
    • Product Dimension: 262×329×681mm
    • Package(1in1 Carton): 800×495×390mm

    (1in1 flightcase): 740×520×420mm

    *The specification of Nebula 1000W Outdoor LED Zoom Gobo Projector subject to change without notice. All rights reserved.

    • Independent R &D optical module with high intensity
    • Built-in LED display for easy configuration
    • 25self-configured auto programs for convenient usage
    • 6 Dichoric Colors + 7interchangeable glass gobos(or 6interchangeable glass gobos and open)
    • Linear zoom from 5°to 50°
    • 5 control modes for selection freely
    • IP65

    User Manual

    Specification

    SOURCE

    • Light Source: 1000W Color WhiteLED
    • Color Temperature: 6600K
    • Average LED Life:20,000 Hour

    POWER

    • Input Voltage: 100-240VAC, 50/60Hz
    • Power Consumption:1200W

    OPTICAL SYSTEM

    • Zoom: 5° – 50° linear electronic
    • Focus: Motorized linear focus
    • Strobe: 0-25Hz variable speed, pulse and random strobe
    • Dimmer: 0-100% variable linear dimming curves

    COLORS

    • 6 Dichoric Colorsplus open, Index / Bi-directional rotating rainbow effect

    ROTATING GOBOS

    • 1 rotation gobo wheelwith 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos
    • Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
    • Glass gobo outside Φ28mm, insideΦ22mm

    CONTROL&CONNECTION

    • DMX Channel: 10CH
    • Control Mode:DMX, Auto 1, Auto 2, Sound, Scene
    • Full Color 180° Reversible LCD
    • DMX In/Out: 3-pin waterproof Male/Female signal cable
    • PowerIn/Out: 3 pin waterproof Male/Female power cable

    PHYSICAL

    • Protection Rate: IP65
    • Body Finish: Aluminum alloy shellwith high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
    • Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminanceand delay its life greatly

    WEIGHT&DIMENSION

    • Net Weight: 26.05kg
    • Gross Weight:28.50kg
    • Product Dimension: 262×329×681mm
    • Package(1in1 Carton): 800×495×390mm

    (1in1 flightcase): 740×520×420mm

    *The specification of Nebula 1000W Outdoor LED Zoom Gobo Projector subject to change without notice. All rights reserved.

    Advantage
    • Independent R &D optical module with high intensity
    • Built-in LED display for easy configuration
    • 25self-configured auto programs for convenient usage
    • 6 Dichoric Colors + 7interchangeable glass gobos(or 6interchangeable glass gobos and open)
    • Linear zoom from 5°to 50°
    • 5 control modes for selection freely
    • IP65

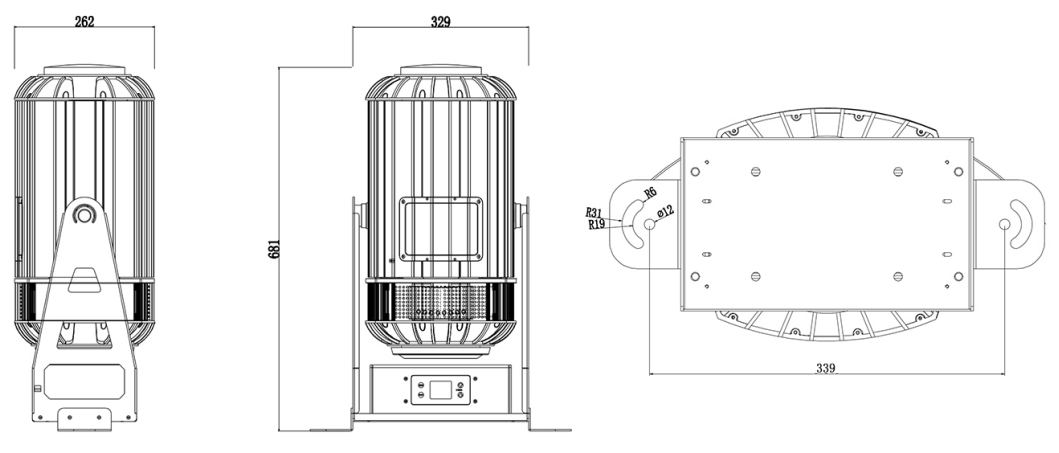

    Dimensional Drawing
