120W LED Outdoor Linear Water Ripple Wall Washer
The 120W LED Outdoor Linear Water Ripple Wall Washer is a high-performance lighting fixture designed to create flowing, dynamic light effects on architectural surfaces. Equipped with 4 × 25W high-output LEDs, it supports customized color temperatures, making it ideal for a variety of outdoor decorative and artistic lighting applications.
With a wide 120°×75° beam angle, smooth 0–100% 16-bit linear dimming, and 0–20Hz strobe effects (synchronous or asynchronous), it delivers rich visual depth and motion. The fixture offers multiple control modes including DMX, auto, gradient, pulse, and manual, and is available with 5/7 DMX channel options for flexible programming.
Engineered for durability, the unit features a robust IP65-rated housing, independent heat dissipation system, and stable operation in temperatures from -10°C to +45°C. With 3-pin waterproof power and signal connectors, it ensures reliable performance in demanding outdoor environments. Ideal for façade lighting, cultural landmarks, and water-themed visual designs.
SOURCE
- Light Source: 4pcs 25W high-performance LED(customized color temperature)
POWER
- Working Voltage: 100-240V AC50-60Hz
- Power Consumption: 120W
OPTICAL SYSTEM
- Beam Angle: 120°*75°
- Dimmer: 0-100% linear dimmer (16-bit)
- Strobe: 0-20Hz (linear synchronous strobe + any asynchronous strobe)
CONTROL & CONNECTION
- DMX channel: 5/7Ch
- Mode: DMX, test, jump, gradient, pulse, auto, static, manual
- Power Connection: Power in/out 3-pin waterproof connector cable
- Signal Connection: DMX in/out 3-pin waterproof connector cable
PHYSICAL
- Protection Rate: IP65
- Heat Dissipation Method: Independent heat dissipation
- Working Environment Temperature: -10 ~ +45℃
- Shell Color: Grey
WEIGHT & DIMENSION
- Net Weight: 9.9kg
- Gross Weight: 11.05kg
- Product Size: 896X131X222mm
- Pakage Size(1in1 carton): 1100X200X300mm
- 4pcs 25W high-performance LED(customized color temperature)
- 75° beam angle provides wide lighting coverage
- Support 0-100% linear dimmer and 16-bit high-precision control
- Support 5/7CH DMX channels
- IP65 protection rate, suitable for various harsh environments indoorand outdoor

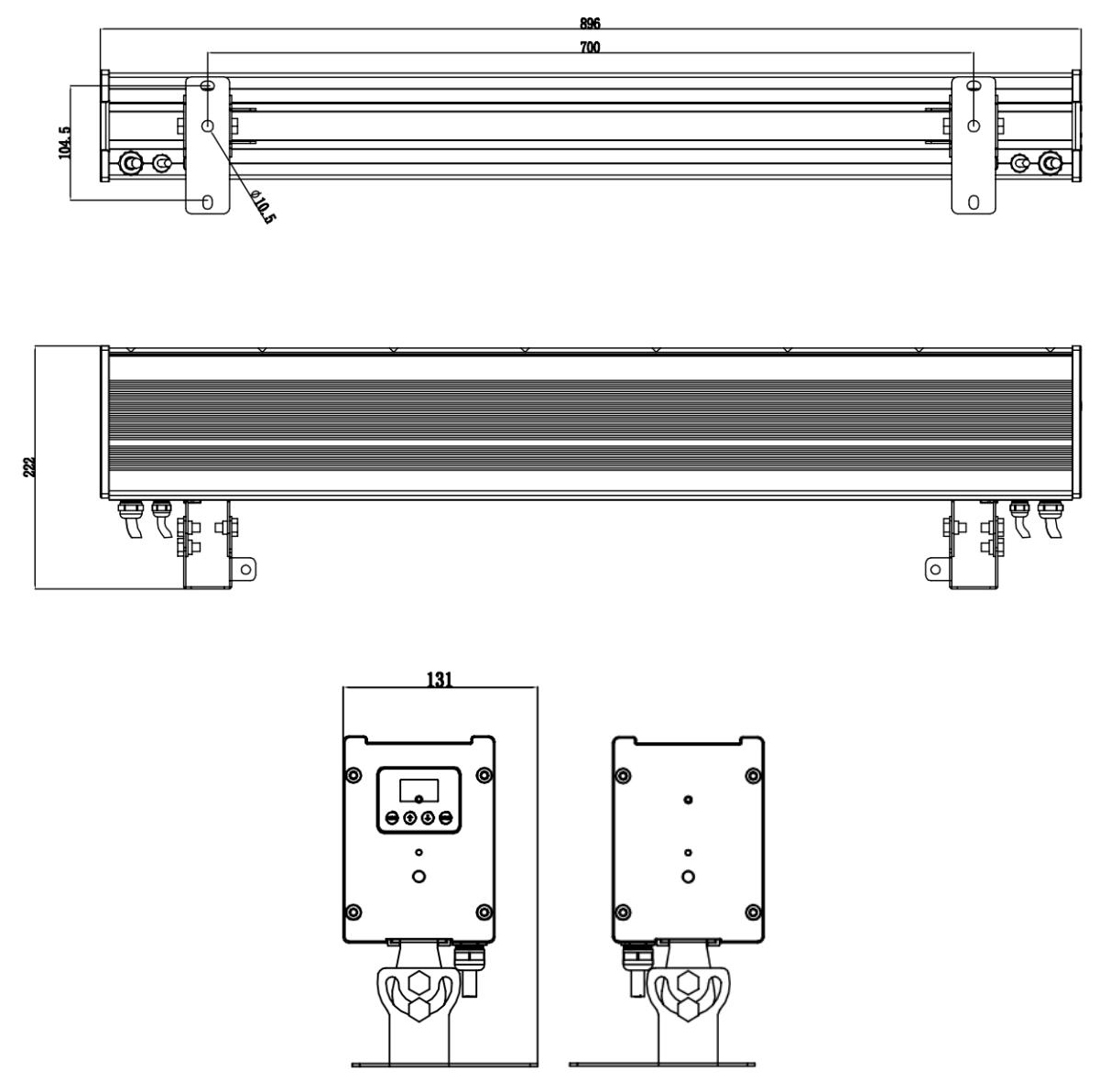

The outlook of Nebula 120W LED Outdoor Linear Water Ripple Wall Washer is fashionable from the dimensional drawing.
- Specification
-
SOURCE
- Light Source: 4pcs 25W high-performance LED(customized color temperature)
POWER
- Working Voltage: 100-240V AC50-60Hz
- Power Consumption: 120W
OPTICAL SYSTEM
- Beam Angle: 120°*75°
- Dimmer: 0-100% linear dimmer (16-bit)
- Strobe: 0-20Hz (linear synchronous strobe + any asynchronous strobe)
CONTROL & CONNECTION
- DMX channel: 5/7Ch
- Mode: DMX, test, jump, gradient, pulse, auto, static, manual
- Power Connection: Power in/out 3-pin waterproof connector cable
- Signal Connection: DMX in/out 3-pin waterproof connector cable
PHYSICAL
- Protection Rate: IP65
- Heat Dissipation Method: Independent heat dissipation
- Working Environment Temperature: -10 ~ +45℃
- Shell Color: Grey
WEIGHT & DIMENSION
- Net Weight: 9.9kg
- Gross Weight: 11.05kg
- Product Size: 896X131X222mm
- Pakage Size(1in1 carton): 1100X200X300mm
- Advantage
-
- 4pcs 25W high-performance LED(customized color temperature)
- 75° beam angle provides wide lighting coverage
- Support 0-100% linear dimmer and 16-bit high-precision control
- Support 5/7CH DMX channels
- IP65 protection rate, suitable for various harsh environments indoorand outdoor
- Dimensional Drawing
-
The outlook of Nebula 120W LED Outdoor Linear Water Ripple Wall Washer is fashionable from the dimensional drawing.
