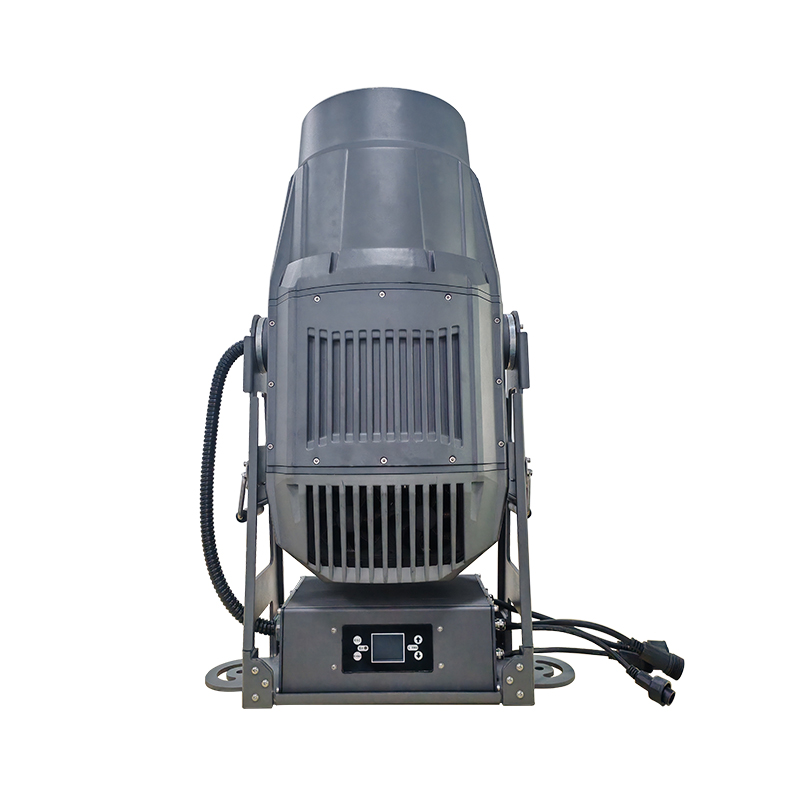

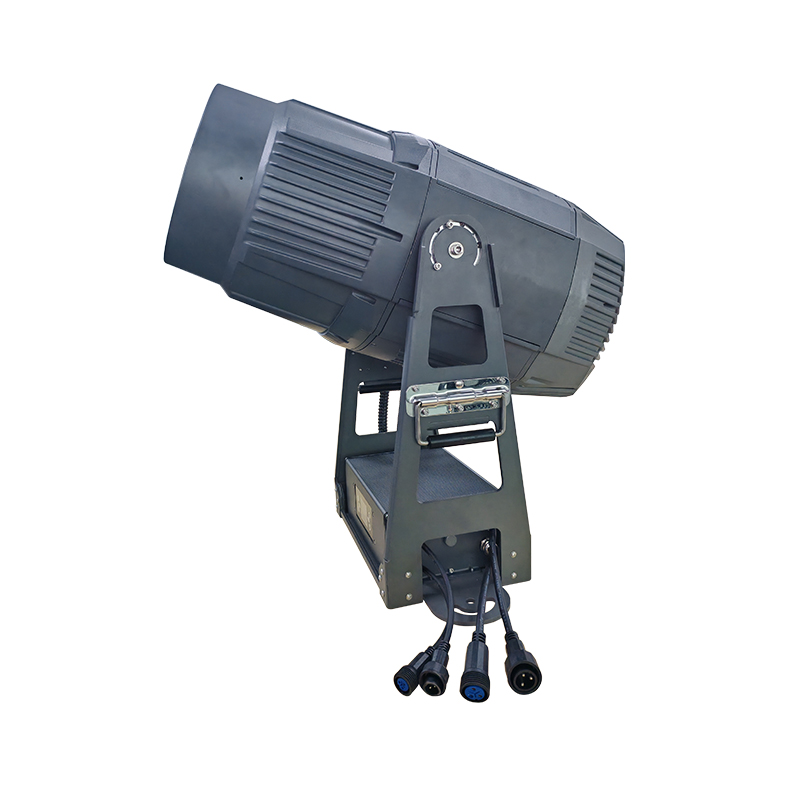

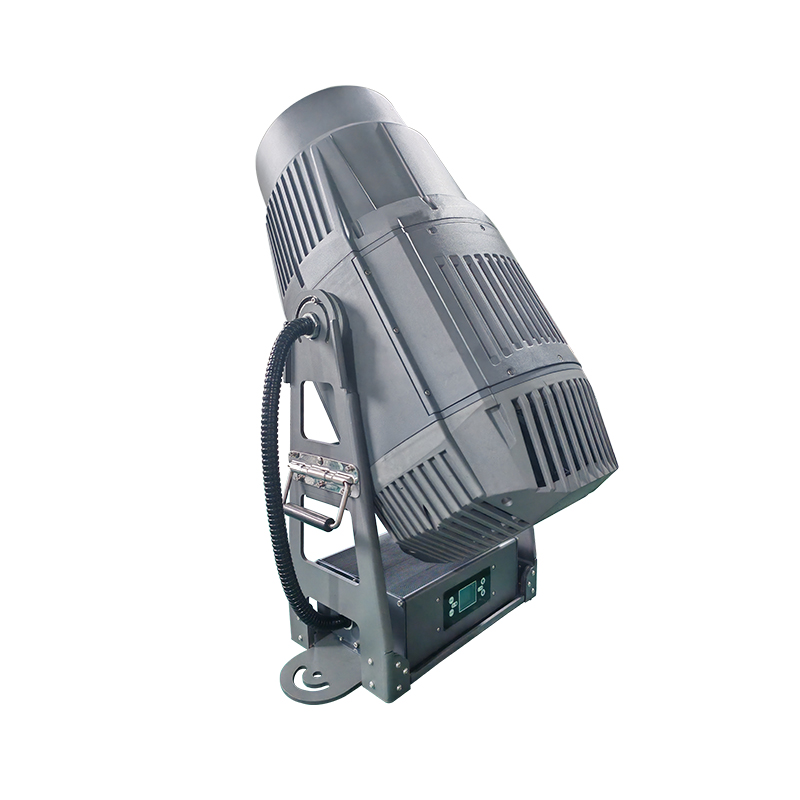

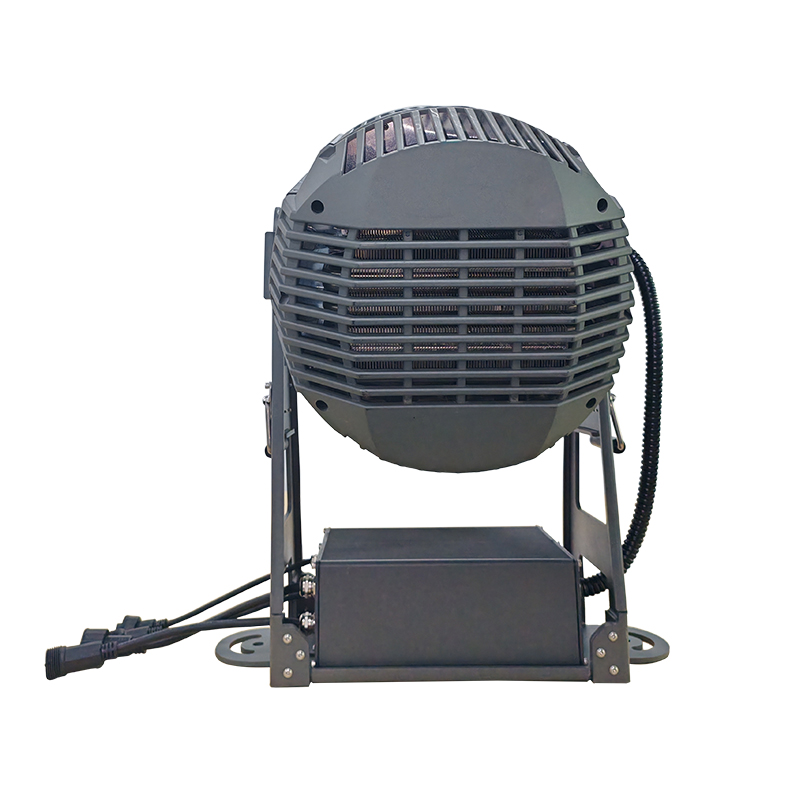

1400W LED Outdoor Framming Gobo Projector
This high-performance lighting fixture is equipped with a powerful 1400W white LED module, delivering a crisp 7500K color temperature (customizable) and an impressive lifespan of over 30,000 hours. Featuring a large 180mm output lens, it ensures strong, clear projection with low power consumption.
With a power input range of AC100-240V at 50/60Hz and a total power consumption of 1800W, this fixture is built for professional use. Its advanced optical system offers a 5°-40° smooth linear electronic zoom, high-speed strobe effects (up to 25T/sec), and a 0-100% smooth LED dimmer.
The color system includes a precise CMY+CTO mixing module and a color wheel with 7 dichroic colors plus white, offering half-color and dynamic rainbow effects. For creative visuals, the gobo system includes fixed and rotating gobos, along with a dynamic effect wheel for fire and water-style effects.
Framing capabilities include four rotating blades with 90° rotation for accurate shaping. Control options feature DMX (30 channels), master-slave, sound, and auto modes, supported by stable signal protection. A 2.8-inch LCD display with a user-friendly interface and IP65-rated protection ensure reliable operation in various environments.
Designed specifically for architectural and outdoor gobo projection, this fixture is ideal for projecting logos, patterns, signage, and dynamic effects onto building facades, landmarks, event spaces, and themed installations. Its high brightness, precision optics, and robust weather-resistant design make it a perfect choice for long-distance, high-impact image projection.
SOURCE
- Source: 1pcs 1400W white LED module
- Color Temperature: 7500K ( customizable)
- Life: More than 30,000 hours and low power consumption
- Lens: The effective diameter of the light output lensis 180mm
POWER
- Input Voltage: AC100-240V50/60Hz
- Power Consumption: 1800W
OPTICAL SYSTEM
- High Resolution: High-precision optics
- Zoom: 5°-40°, linear electroniczoom, smooth adjustment
- Prism: 4-facet prism with variable speed and direction
- Frost: Gradient frostsystem
- Strobe: 25T/sec high-speed LED shutter/strobeeffect, variable speed, variablepreset, randomstrobe and dimming pulse effect
- Dimmer: 0-100% smooth linear LED dimmer
COLOR SYSTEM
- CMY+CTO: Double-piece sliding type uniform and smooth CMY+CTO correction color mixing system
- 1 Color Wheel : 7 dichroic colors +white + open color (half-color mode available), variable direction rainbow effect with adjustable speed
GOBO SYSTEM
- 1 FixedGoboWheel: 7 gobos + open, with variable speed and direction, and shaking effect
- 1 Rotating Gobo Wheel: 6 rotating gobos + open, with gobo shaking
- 1 Dynamic Effect Wheel(fire wheel): Variable direction and water flowing effect
FRAMMING SYSTEM
- Framming System: 4 framming blades, The entire frammingsystem can be rotated 90°
CONTROL
- DMX Channel: 30Ch
- Master-slave, soundcontrol or auto operation, DMX signal and editing function
- Shield input signal protection, the signal is stable and interference-free
PHYSICAL
- Protection Rate: IP65
- Display: 2.8-inch LCD display, 4 touch button function control, 180° interchangeable, with screen off/lock screen function, Chinese and English switching
- Input/Output: 3-pin DMX connector input/output
WEIGHT & DIMENSION
- Net Weight: 39.0kg
- Gross Weight: 42.0kg
- Size: 490x323x770mm
- Package Size: 870x715x485mm
- Independently developed optical module, excellent brightness and clarity
- Built-in LED display and simple and intuitive interface design, easy to operate
- 10 self-configuredpreset programs
- 7 colorfilters+ CMY + CTO ensures rich color effects
- 7 fixed gobos+ 6 rotating gobos+ 1 dynamic effect wheel (fire wheel)
- 4 frammingblades, 90° rotation for precise framming
- 5°-40° linearzoom, can be adjusted freely according to the size of the venue and needs
- 5 control modes, freely selectable
- IP65 protection rate
The outlook of Nebula 1400W LED Outdoor Framming Gobo Projector is fashionable from the dimensional drawing.
- Specification
-
SOURCE
- Source: 1pcs 1400W white LED module
- Color Temperature: 7500K ( customizable)
- Life: More than 30,000 hours and low power consumption
- Lens: The effective diameter of the light output lensis 180mm
POWER
- Input Voltage: AC100-240V50/60Hz
- Power Consumption: 1800W
OPTICAL SYSTEM
- High Resolution: High-precision optics
- Zoom: 5°-40°, linear electroniczoom, smooth adjustment
- Prism: 4-facet prism with variable speed and direction
- Frost: Gradient frostsystem
- Strobe: 25T/sec high-speed LED shutter/strobeeffect, variable speed, variablepreset, randomstrobe and dimming pulse effect
- Dimmer: 0-100% smooth linear LED dimmer
COLOR SYSTEM
- CMY+CTO: Double-piece sliding type uniform and smooth CMY+CTO correction color mixing system
- 1 Color Wheel : 7 dichroic colors +white + open color (half-color mode available), variable direction rainbow effect with adjustable speed
GOBO SYSTEM
- 1 FixedGoboWheel: 7 gobos + open, with variable speed and direction, and shaking effect
- 1 Rotating Gobo Wheel: 6 rotating gobos + open, with gobo shaking
- 1 Dynamic Effect Wheel(fire wheel): Variable direction and water flowing effect
FRAMMING SYSTEM
- Framming System: 4 framming blades, The entire frammingsystem can be rotated 90°
CONTROL
- DMX Channel: 30Ch
- Master-slave, soundcontrol or auto operation, DMX signal and editing function
- Shield input signal protection, the signal is stable and interference-free
PHYSICAL
- Protection Rate: IP65
- Display: 2.8-inch LCD display, 4 touch button function control, 180° interchangeable, with screen off/lock screen function, Chinese and English switching
- Input/Output: 3-pin DMX connector input/output
WEIGHT & DIMENSION
- Net Weight: 39.0kg
- Gross Weight: 42.0kg
- Size: 490x323x770mm
- Package Size: 870x715x485mm
- Advantage
-
- Independently developed optical module, excellent brightness and clarity
- Built-in LED display and simple and intuitive interface design, easy to operate
- 10 self-configuredpreset programs
- 7 colorfilters+ CMY + CTO ensures rich color effects
- 7 fixed gobos+ 6 rotating gobos+ 1 dynamic effect wheel (fire wheel)
- 4 frammingblades, 90° rotation for precise framming
- 5°-40° linearzoom, can be adjusted freely according to the size of the venue and needs
- 5 control modes, freely selectable
- IP65 protection rate
- Dimensional Drawing
-
The outlook of Nebula 1400W LED Outdoor Framming Gobo Projector is fashionable from the dimensional drawing.
