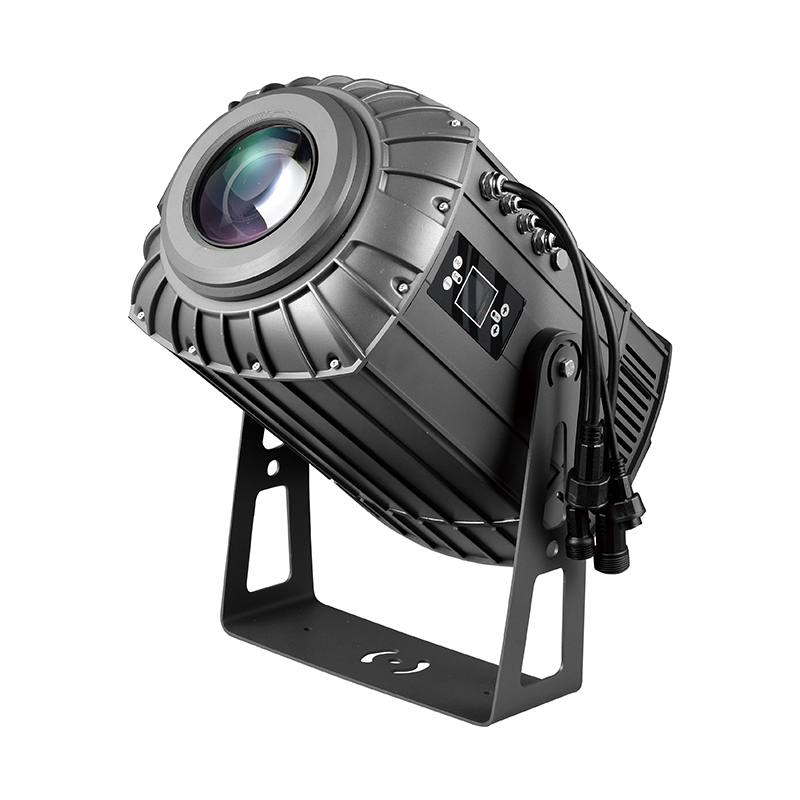

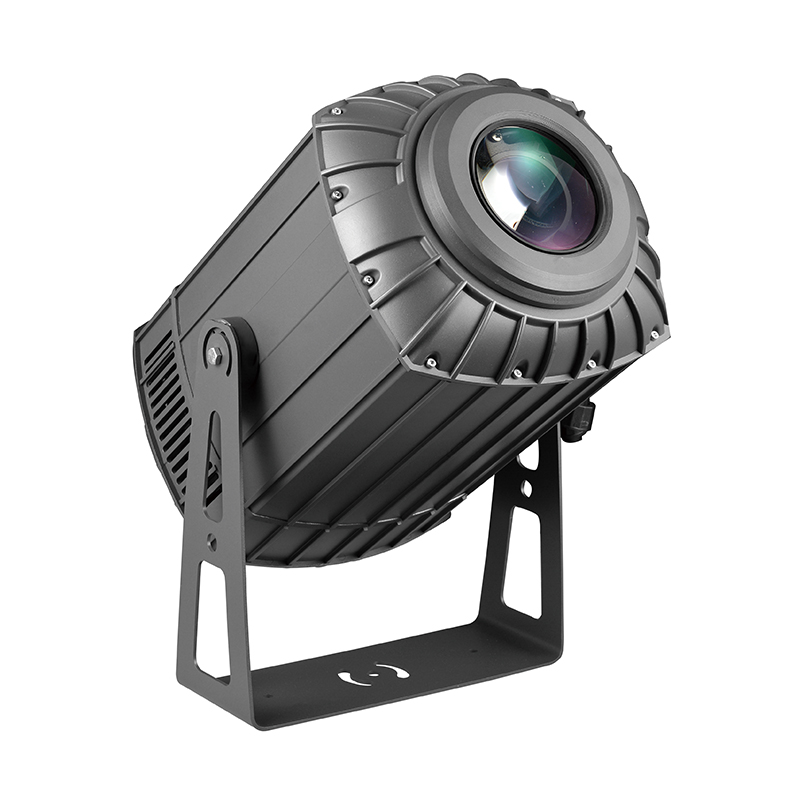

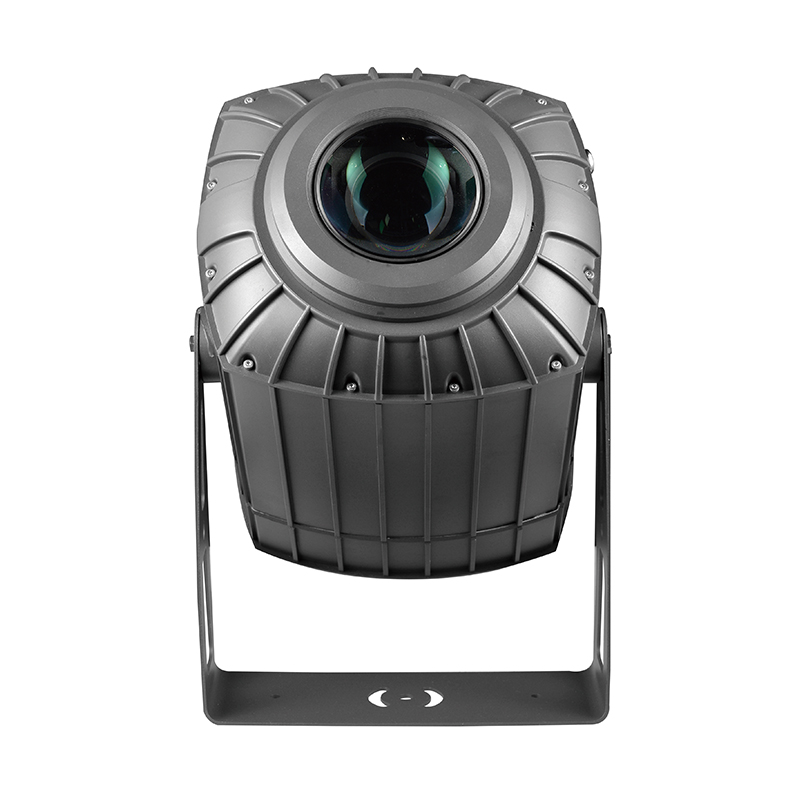

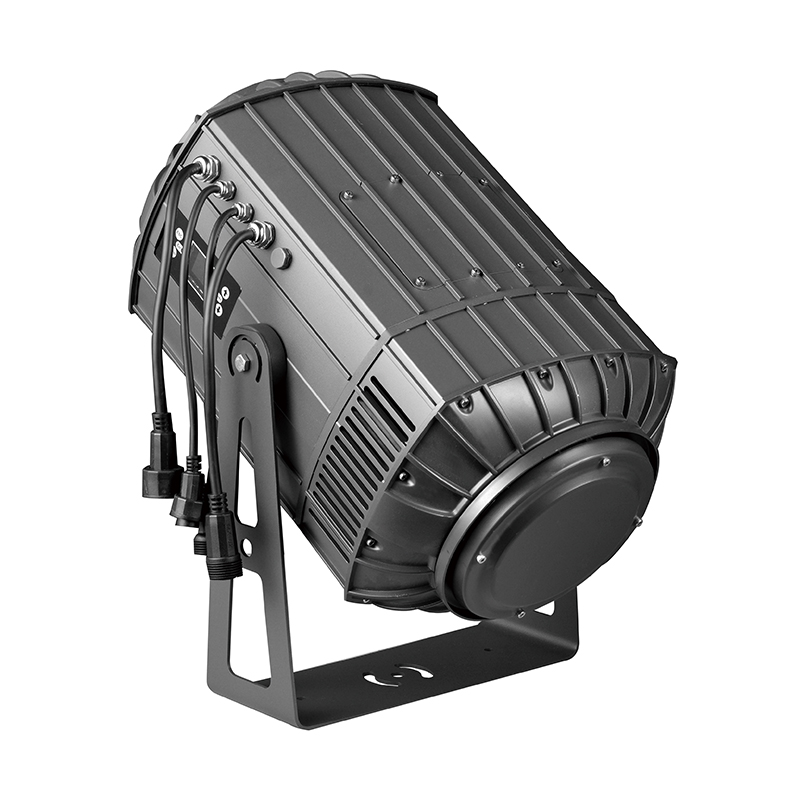

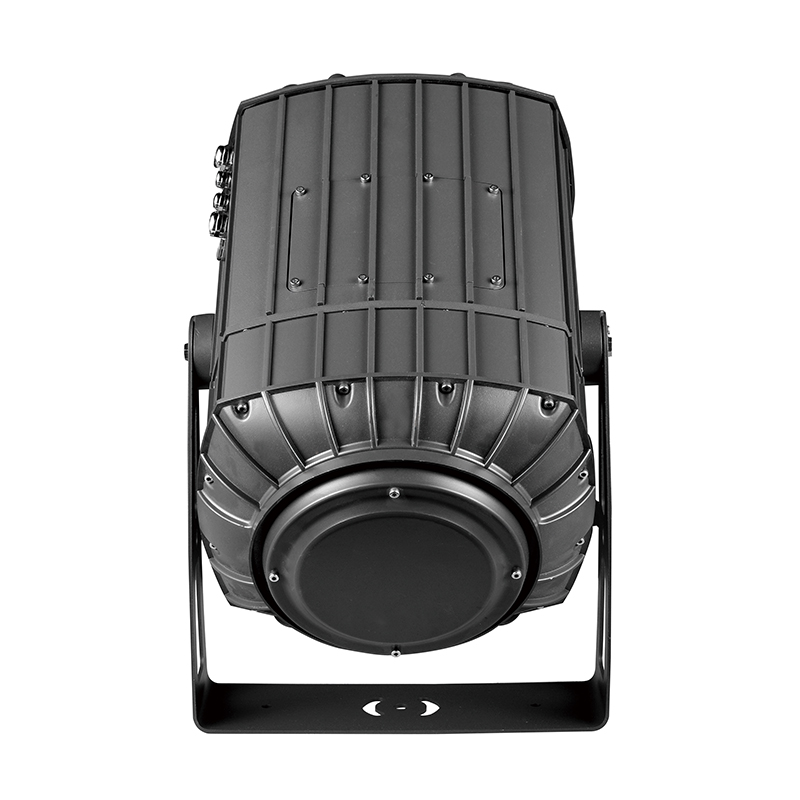

300W LED Zoom Outdoor Image Projector

300W LED Zoom Outdoor Image Projector with IP65

Mizar 300-W-Z-S

Mizar 300-W-S is a LED exterior image projector powered by bright 300W LED source with high output. The gobo light can project image on wall, street, building, and car etc. It can used as projection advertising. The logo projection on wall, logo projection on floor, logo projection on building can provide desired effect.

The unique gobo light fits 1 color wheel with 6 filters plus open, 1 rotating gobo wheel with 7 interchangeable glass gobos(or 6 interchangeable glass gobos and open) . The logo projector custom features motorized linear focus, fast and smooth dimmer and wide range zoom from 11 degree to 46 degree, which can bring you with endless creative freedom and amazing experience.

This kind of gobo projectors have 5 freely control modes including DMX, Auto 1, Auto 2, Sound, Scene and 10 DMX channels. There are 25 self-configured automatic programs for easy operation. Users can configure automatic program freely via setting the function value on the LCD display of the holiday projector, instead of configuring program by controller. The aluminum housing and protection rate IP65 make the water projection light endure raining, cooling and dirty.

With excellent good quality, high reliability and affordable price, Nebula Mizar 300-W-Z-S LED image projector becomes the best outdoor gobo projector for your choice. It is a perfect match for projection any gobos on large-scale shopping center, wedding, meeting room, restaurant, showroom, promotion, etc, indoor and outdoor environment is available.

Specification
Advantage
Dimensional Drawing
Illuminance & Lumens
Colors & Gobos
Video
Download

SOURCE

Source: 300W White LED
CT: 6500K
Life: >20,000 hrs

POWER

Power Supply: AC 100-240V, 50/60Hz
Power Consumption: 400W

OPTICAL SYSTEM

Zoom: 11°-46° linear zoom
Focus: Motorized linear focus
Dimmer: 0-100% smooth dimmer
Strobe: 1-25 Hz variable speed

COLORS

1 Color Wheel with 6 filters plus open, full and half color function, two directional rainboweffects

GOBOS

1 rotating Gobo Wheel with 7interchangeable glass gobos( Or 6 interchangeable glass gobos plus open). Index, shake and two directional rotation
Glass gobo outside Φ28mm, insideΦ22mm

CONTROL & CONNECTION

Control Mode: DMX, Auto1, Auto2, Sound, Scene
DMX Channel: 10CH
DMX Input / Output: 3-pin Male/Female signal cable
Power Input / Output: Waterproof power cable input/output

PHYSICAL

Protect Rate: IP65

WEIGHT & DIMENSION

Net Weight: 18.1kg
Dimension: 324×478×565mm
Package

1in1 carton: 620×415×335mm, G.W 20.40kg

1in1 flightcase: 595×450×435mm, G.W 30.7kg

2in1 flightcase: 700×450×730mm, G.W 40.7kg

INCLUDED ITEMS

User Manual
1×1.5mm²Power cable
1×1.5mm²Signal cable
Safety wire

● Independent R & D optical module with high intensity
● Built-in LED display for easy configuration
● 25 self-configured auto programs for convenient usage
● 6 Dichoric Colors + 7 interchangeable glass gobos(or 6 interchangeable glass gobos and open)
● Linear zoom from 11°-46°
● 5 control modes for selection freely
● IP65

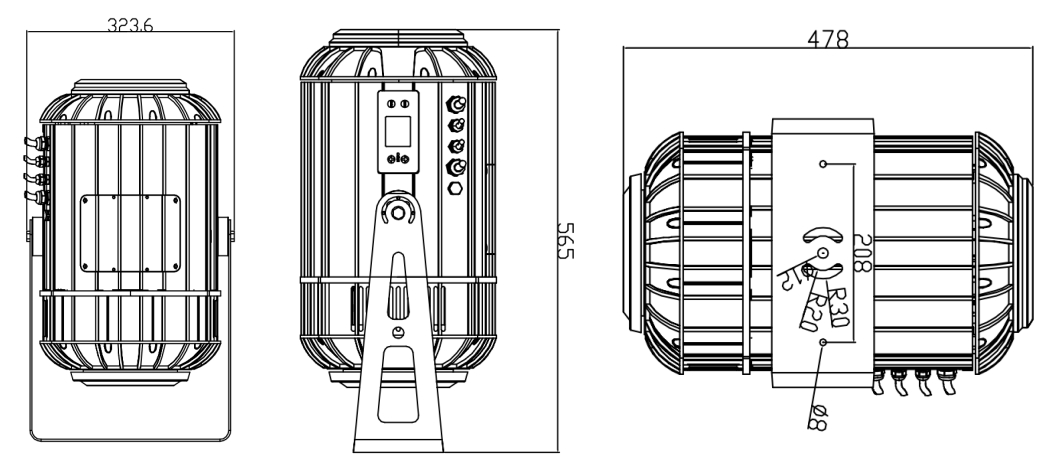

From the dimensional drawing of 300w Led gobo light, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 300W LED projector logo lights.

From the Illuminance chart of 300W logo projector LED, the minimum zoom is 11 degree and the maximum zoom is 46 degree.

The Lumens of the 300w outdoor gobo projector LED is below:
11 degree: 9000lm
15 degree: 11000lm
46 degree: 12000lm

The 300W LED light logo projection on building fits 7 interchangeable glass gobos(or 6 interchangeable glass gobos and open) and 6 colors. We welcome custom image gobos from customers.
