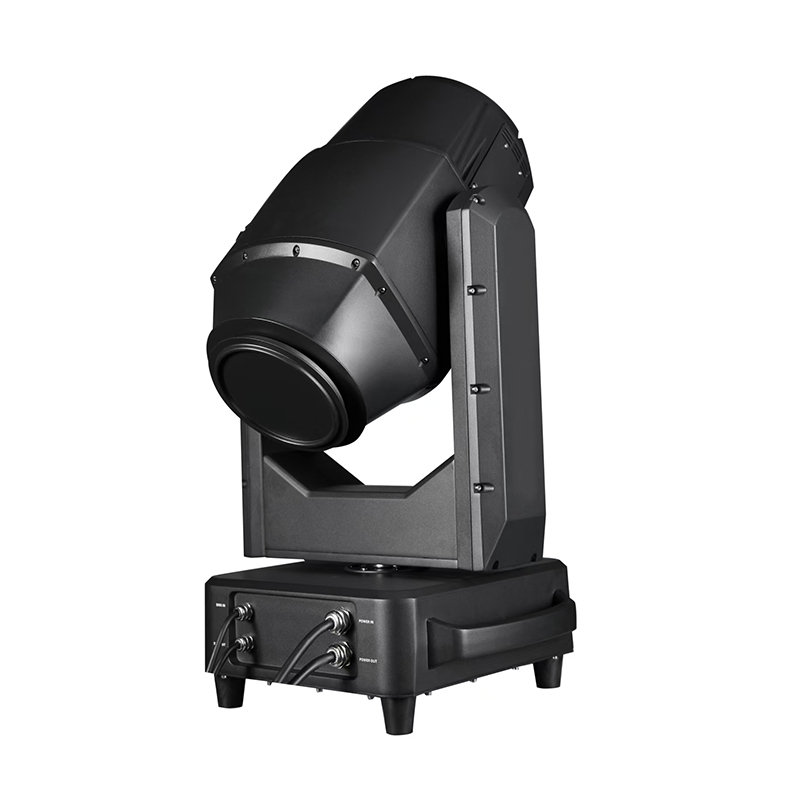

480W Outdoor Beam Moving Head – Powerful, Precise, Weather-Resistant
The 480W Outdoor Beam Moving Head is a high-output lighting fixture built for outdoor performance and durability. Featuring a Philips 480 light source with a color temperature of 7900±500K and a 180mm lens, it delivers a sharp, intense 0–2° beam for long-distance projection.
With 540° pan and 270° tilt powered by high-precision three-phase motors, it offers smooth, accurate motion and automatic correction. The optical system includes electronic focusing, dual rotating prisms (8+16 facets), frost effect, and flicker-free linear dimming from 0–100%. Additional effects include 14 colors with rainbow and atomization functions, plus 13 fixed gobos for dynamic pattern projection.
Housed in a robust IP66-rated die-cast aluminum shell, the fixture is built to withstand harsh outdoor environments. It supports DMX 512, sound control, auto-run, and master-slave modes with dual-channel options (16/20 channels), and features a user-friendly LCD screen that rotates 180° for flexible installation. Ideal for large-scale outdoor shows, architecture, and cultural lighting applications.
SOURCE
- Light Source System: 480 (Philips)
- Color Temperature: 7900±500K
- Lens Diameter: 180mm
POWER
- Input Voltage: AC90V-235V 50-60Hz
- Power Consumption: 800W
MOVEMENT
- Pan:540 ° rotation, resolution 8/16 bit, with fine tuning
- Tilt: 270 ° rotation, resolution 8/16 bit, with fine tuning
- Tiltand Pan: Equipped with high-precision three-phase motors, accurate positioning, smooth operation, and automatic correction
OPTICAL SYSTEM
- Focusing System: Electronic focusing
- Frost: Equipped with frostfunction and capable of achieving soft lighting effect
- Prism: 8+16 prism, dual prism rotation, adjustable speed
- Dimming Curve: 0% -100% linear dimming, smooth without flicker
- Strobe:1-13 tims/second
- Beam Angle: 0-2 °
COLOR
- Color Wheel:14+rainbow effect+atomization function
GOBOS
- Gobo Wheel: 13 fixed gobos+open
CONTROL / CONNECTION
- Dual Channel: 16 channel or 20 channel
- Control mode: DMX 512, sound control, auto run, master-slave
PHYSICAL
- Protection Rate: IP66
- Motor: The XY axis uses a three-phase motor, which ensures high speed stability and accurate positioning angle of the lamp
- Display Screen: LCD display screen, adaptable to different installation positions, rotatable 180 °of positioning
- Shell, fully die cast aluminum
WEIGHT & DIMENSION
- Lamp Body Size:695x390x326mm
- Net Weight:26kg
*The specification of Nebula 480W Outdoor Beam Moving Head subject to change without notice. All rights reserved.
- High Brightness – Uses a powerful Philips 480W light source with a sharp 7900K color temperature
- Ultra-Narrow Beam – 0–2° beam angle ideal for long-range projection
- Precise Movement – 540° pan and 270° tilt with 8/16-bit resolution and fine tuning for accurate positioning
- Stable and Smooth Operation – Equipped with high-precision three-phase motors and automatic correction
- Versatile Effects – Includes frost effect, dual rotating prisms (8+16), and adjustable prism speed
- Rich Color Output – 14-color wheel with rainbow effect and atomization function for dynamic visuals
- Pattern Variety – 13 fixed gobos for creative projection effects
- Flexible Control Options – Supports DMX512, sound control, auto run, and master-slave modes with 16 or 20 channels
- Weatherproof Design – IP66-rated die-cast aluminum housing for reliable outdoor use
- User-Friendly Interface – LCD display with 180° rotation for easy setup in any position
- Specification
-
SOURCE
- Light Source System: 480 (Philips)
- Color Temperature: 7900±500K
- Lens Diameter: 180mm
POWER
- Input Voltage: AC90V-235V 50-60Hz
- Power Consumption: 800W
MOVEMENT
- Pan:540 ° rotation, resolution 8/16 bit, with fine tuning
- Tilt: 270 ° rotation, resolution 8/16 bit, with fine tuning
- Tiltand Pan: Equipped with high-precision three-phase motors, accurate positioning, smooth operation, and automatic correction
OPTICAL SYSTEM
- Focusing System: Electronic focusing
- Frost: Equipped with frostfunction and capable of achieving soft lighting effect
- Prism: 8+16 prism, dual prism rotation, adjustable speed
- Dimming Curve: 0% -100% linear dimming, smooth without flicker
- Strobe:1-13 tims/second
- Beam Angle: 0-2 °
COLOR
- Color Wheel:14+rainbow effect+atomization function
GOBOS
- Gobo Wheel: 13 fixed gobos+open
CONTROL / CONNECTION
- Dual Channel: 16 channel or 20 channel
- Control mode: DMX 512, sound control, auto run, master-slave
PHYSICAL
- Protection Rate: IP66
- Motor: The XY axis uses a three-phase motor, which ensures high speed stability and accurate positioning angle of the lamp
- Display Screen: LCD display screen, adaptable to different installation positions, rotatable 180 °of positioning
- Shell, fully die cast aluminum
WEIGHT & DIMENSION
- Lamp Body Size:695x390x326mm
- Net Weight:26kg
*The specification of Nebula 480W Outdoor Beam Moving Head subject to change without notice. All rights reserved.
- Advantage
-
- High Brightness – Uses a powerful Philips 480W light source with a sharp 7900K color temperature
- Ultra-Narrow Beam – 0–2° beam angle ideal for long-range projection
- Precise Movement – 540° pan and 270° tilt with 8/16-bit resolution and fine tuning for accurate positioning
- Stable and Smooth Operation – Equipped with high-precision three-phase motors and automatic correction
- Versatile Effects – Includes frost effect, dual rotating prisms (8+16), and adjustable prism speed
- Rich Color Output – 14-color wheel with rainbow effect and atomization function for dynamic visuals
- Pattern Variety – 13 fixed gobos for creative projection effects
- Flexible Control Options – Supports DMX512, sound control, auto run, and master-slave modes with 16 or 20 channels
- Weatherproof Design – IP66-rated die-cast aluminum housing for reliable outdoor use
- User-Friendly Interface – LCD display with 180° rotation for easy setup in any position
