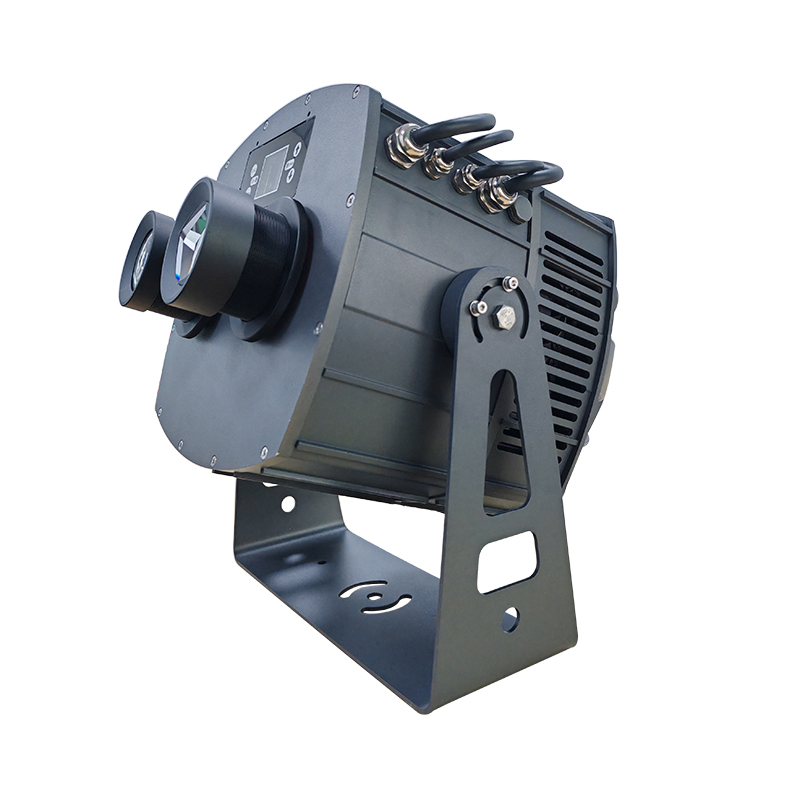

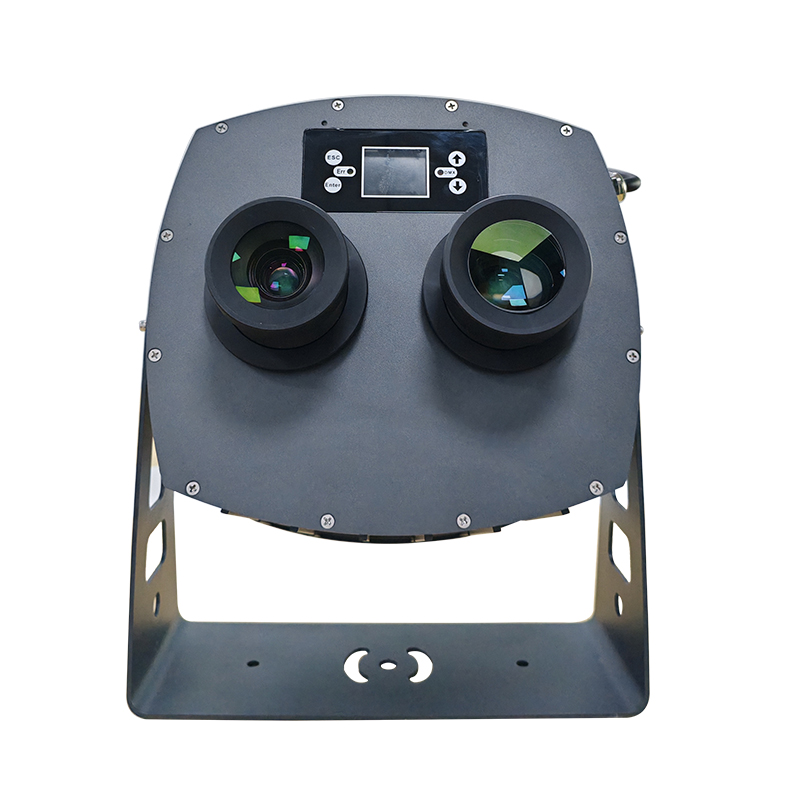

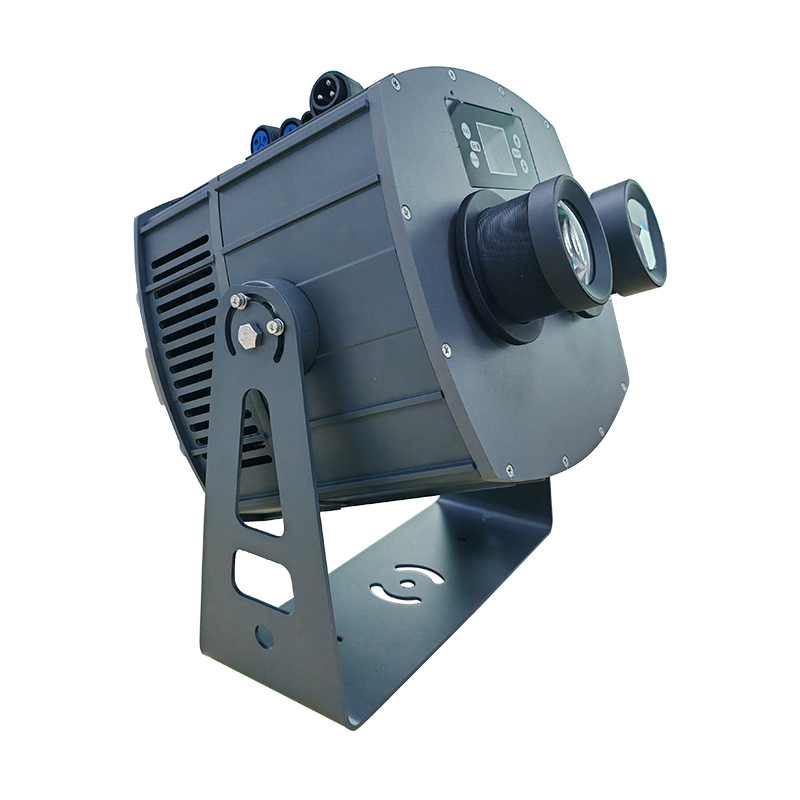

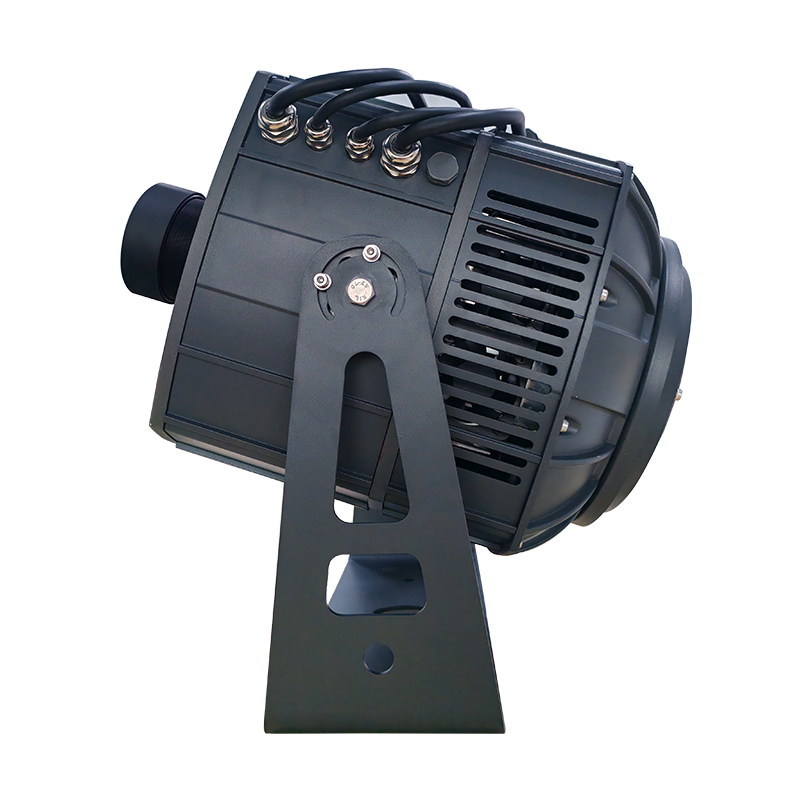

500W LED Outdoor 2in1 Water Ripple Floating Gobo Projector

Mizar 500-W-RF-D

The 500W LED Outdoor 2-in-1 Water Ripple Floating Gobo Projector is a versatile and high-output lighting fixture designed for stunning architectural projection and immersive visual effects in outdoor environments. Featuring a powerful 500W white LED with a 6500K color temperature and over 20,000 hours of lifespan, it delivers bright, clear, and reliable performance for long-term installations.



Equipped with both gobo projection and water ripple effects, the fixture offers a 40° beam angle for gobos and 50° for ripple effects, with manual focus and 0–100% smooth dimming for each lens individually. Its 3-facet prism, color wheel with 5 filters, and multiple flowing effects allow for vibrant, motion-rich lighting designs.



It includes a rotating gobo wheel, floating ripple glass wheel, and dual independent water ripple wheels, all with bi-directional, variable-speed flowing effects, ideal for creating layered, dynamic scenes on building facades, landscapes, or themed spaces.



With DMX, auto, sound, and scene control modes, 11 DMX channels, and IP65-rated waterproof housing, this projector is built to perform in all weather conditions—making it a powerful solution for outdoor lighting, cultural landmarks, events, and creative projection mapping.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE

    • Source: 500W White LED
    • CT: 6500K
    • Life: >20,000 hrs

    POWER

    • Power Supply: AC 100-240V, 50/60Hz
    • Power Consumption: 550W

    OPTICAL SYSTEM

    • Beam Angle:40°(gobo lens), 50°(water ripple lens)
    • Focus: Manualfocus
    • Dimmer: 0-100% smooth dimmer, the two lenses can be dimmed separately
    • Strobe: 1-25 Hz variable speed
    • Prism: 3-facet prism effect

    COLORS

    • 1 color wheel with 5filters plus open, with linear and two directional variable speed flowing effect

    GOBO

    • 1 rotating gobo wheel, withtwo directional variable speed flowing effect

    RIPPLE FLOATING

    • 1 ripple floating glass wheel, withtwo directionalvariable speed flowing effect

    WATER RIPPLE

    • 2 independent water rippleglass wheels, withtwo directional variable speed flowing effect

    CONTROL & CONNECTION

    • Control Mode: DMX, Auto1, Auto2, Sound, Scene
    • DMX Channel: 11CH
    • DMX Input / Output: 3-pin Male/Female signal cable
    • Power Input / Output: Waterproof power cable input/output

    PHYSICAL

    • Protect Rate: IP65

    WEIGHT & DIMENSION

    • Net Weight: 14.45kg
    • Gross Weight: 16.55kg
    • Dimension: 259×313×343mm
    • Package(1in1 carton): 500×450×400mm
    • High Brightness & Long Lifespan– Equipped with a 500W white LED and 6500K color temperature, delivering intense output with over 20,000 hours of service life.
    • 2-in-1 Design for Versatile Effects– Combines gobo projection and water ripple effects in one unit, perfect for rich, layered outdoor visual experiences.
    • Dual Beam Angles– Features a 40° gobo lens and 50° water ripple lens, providing broad coverage for various projection needs.
    • Independent Lens Control– Separate dimming control for both lenses allows precise brightness adjustments and creative layering of effects.
    • Smooth Dimming & Dynamic Strobe– Offers 0–100% smooth dimming and 1–25Hz variable strobe speed for both subtle and dramatic transitions.
    • Multiple Flowing Effects– Includes rotating gobo wheel, floating ripple glass, and dual water ripple wheels, all with bi-directional variable-speed flowing effects, enhancing motion and realism.
    • Vibrant Color Projection– Built-in color wheel with 5 filters plus open delivers a range of vivid tones and flowing color effects.
    • 3-Facet Prism for Multi-Layered Visuals– Adds depth and texture with a 3-facet prism, creating enhanced projection richness.
    • Flexible Control Options– Supports DMX, auto, sound, and scene modes with 11-channel DMX control for easy integration and creative programming.
    • Reliable Outdoor Performance– With an IP65-rated waterproof design and robust construction, it’s ideal for all-weather architectural and landscape projection.

    User Manual

    Specification

    SOURCE

    • Source: 500W White LED
    • CT: 6500K
    • Life: >20,000 hrs

    POWER

    • Power Supply: AC 100-240V, 50/60Hz
    • Power Consumption: 550W

    OPTICAL SYSTEM

    • Beam Angle:40°(gobo lens), 50°(water ripple lens)
    • Focus: Manualfocus
    • Dimmer: 0-100% smooth dimmer, the two lenses can be dimmed separately
    • Strobe: 1-25 Hz variable speed
    • Prism: 3-facet prism effect

    COLORS

    • 1 color wheel with 5filters plus open, with linear and two directional variable speed flowing effect

    GOBO

    • 1 rotating gobo wheel, withtwo directional variable speed flowing effect

    RIPPLE FLOATING

    • 1 ripple floating glass wheel, withtwo directionalvariable speed flowing effect

    WATER RIPPLE

    • 2 independent water rippleglass wheels, withtwo directional variable speed flowing effect

    CONTROL & CONNECTION

    • Control Mode: DMX, Auto1, Auto2, Sound, Scene
    • DMX Channel: 11CH
    • DMX Input / Output: 3-pin Male/Female signal cable
    • Power Input / Output: Waterproof power cable input/output

    PHYSICAL

    • Protect Rate: IP65

    WEIGHT & DIMENSION

    • Net Weight: 14.45kg
    • Gross Weight: 16.55kg
    • Dimension: 259×313×343mm
    • Package(1in1 carton): 500×450×400mm
    Advantage
    • High Brightness & Long Lifespan– Equipped with a 500W white LED and 6500K color temperature, delivering intense output with over 20,000 hours of service life.
    • 2-in-1 Design for Versatile Effects– Combines gobo projection and water ripple effects in one unit, perfect for rich, layered outdoor visual experiences.
    • Dual Beam Angles– Features a 40° gobo lens and 50° water ripple lens, providing broad coverage for various projection needs.
    • Independent Lens Control– Separate dimming control for both lenses allows precise brightness adjustments and creative layering of effects.
    • Smooth Dimming & Dynamic Strobe– Offers 0–100% smooth dimming and 1–25Hz variable strobe speed for both subtle and dramatic transitions.
    • Multiple Flowing Effects– Includes rotating gobo wheel, floating ripple glass, and dual water ripple wheels, all with bi-directional variable-speed flowing effects, enhancing motion and realism.
    • Vibrant Color Projection– Built-in color wheel with 5 filters plus open delivers a range of vivid tones and flowing color effects.
    • 3-Facet Prism for Multi-Layered Visuals– Adds depth and texture with a 3-facet prism, creating enhanced projection richness.
    • Flexible Control Options– Supports DMX, auto, sound, and scene modes with 11-channel DMX control for easy integration and creative programming.
    • Reliable Outdoor Performance– With an IP65-rated waterproof design and robust construction, it’s ideal for all-weather architectural and landscape projection.
    Dimensional Drawing
