600W LED Zoom Outdoor Framming Gobo Projector

Mizar 600-W-Z-SF

The 600W LED Zoom Outdoor Gobo Projector is a high-performance IP65-rated outdoor projection light designed for architectural lighting, landscape illumination, and large-scale events. Powered by a 600W 6600K cold white LED, it delivers high brightness, long throw projection, and up to 20,000 hours lifespan.

Featuring a 10°–40° motorized zoom and motorized focus, the fixture ensures sharp and flexible image projection across various distances. The 4-blade framing shutter system with ±90° rotation enables precise beam shaping, ideal for architectural highlighting and stage applications.

Equipped with 6 dichroic colors + open, bi-directional rainbow effect, and a rotating gobo wheel with interchangeable glass gobos, it produces dynamic projection effects including shake, rotation effects—perfect for texture and branding projections.

Built for durability, the IP65 aluminum housing with advanced heat pipe cooling ensures stable performance in harsh outdoor environments. Multiple control modes including DMX (18CH), Auto, Sound, and Scene provide flexible operation for professional lighting setups

Specification
Advantage
Dimensional Drawing

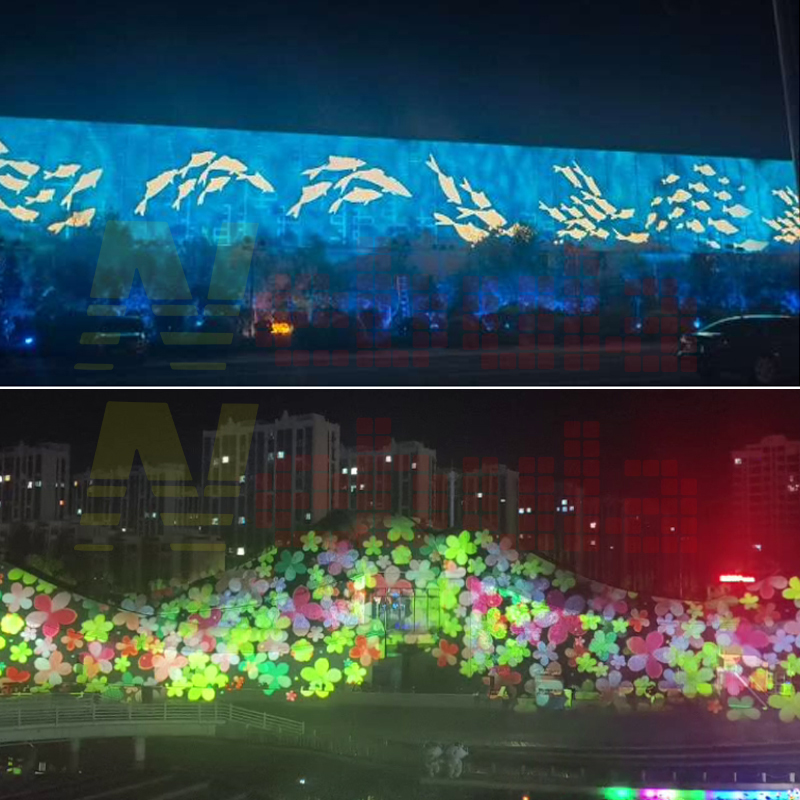

Projection Effect
Colors & Gobos
Video
Download

SOURCE

Light Source: 600W Color WhiteLED
Color Temperature: 6600K
Average LED Life:20,000 Hour

POWER

Input Voltage: 100-240VAC, 50/60Hz
Power Consumption: 750W

OPTICAL SYSTEM

Zoom: 10° -40° linear electronic
Focus: Motorized linear focus
Strobe: 0-25Hz variable speed, pulse and random strobe
Dimmer: 0-100% variable linear dimming curves

FRAMING SHUTTER

Shutters: 4 independent framing shutters
System Rotation:+/- 90°

COLORS

6 Dichoric Colorsplus open, full color & index, Bi-directional rotating rainbow effect and postitioning

ROTATING GOBOS

1 rotation gobo wheel with 6 interchangeable glassgobosplus open or 7 interchangeable glass gobos
Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
Glass gobo outside Φ28mm, insideΦ20mm

CONTROL&CONNECTION

DMX Channel:18CH
Control Mode: DMX, Auto1, Auto 2, Sound, Scene
Full Color 180° Reversible LCD
DMX In/Out: 3 pin waterproof signal cable
PowerIn/Out: 3 pin waterproof power cable

PHYSICAL

Protection Rate: IP65
Body Finish: Aluminum alloy shellwith high strength, surface blasting oxidation treatment, black and gray optional or customized color is available
Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminanceand delay its life greatly

WEIGHT&DIMENSION

Net Weight:27.85kg
Gross Weight:30.25kg
Product Dimension: 262×329×681mm
Package(1in1 Carton): 800×495×390mm

600W High-Brightness LED – Powerful output for long-distance projection
10°–40° Motorized Zoom – Flexible beam control for various applications
Framing Shutter System – 4 blades with ±90° rotation for precise shaping
Dynamic Gobo Effects – Rotating, interchangeable gobos
6 Colors + Rainbow Effect – Rich color and smooth transitions
Motorized Focus & Linear Dimming – Sharp projection with smooth control
IP65 Waterproof Design – Reliable for all outdoor environments
Efficient Cooling System – Stable performance and longer lifespan
Multiple Control Modes – DMX, Auto, Sound, Scene

The outlook of Nebula 600W LED gobo projector is fashionable from the dimensional drawing.
