200W LED Non-zoom Outdoor Logo Projection Light with IP65

Mizar 200-W

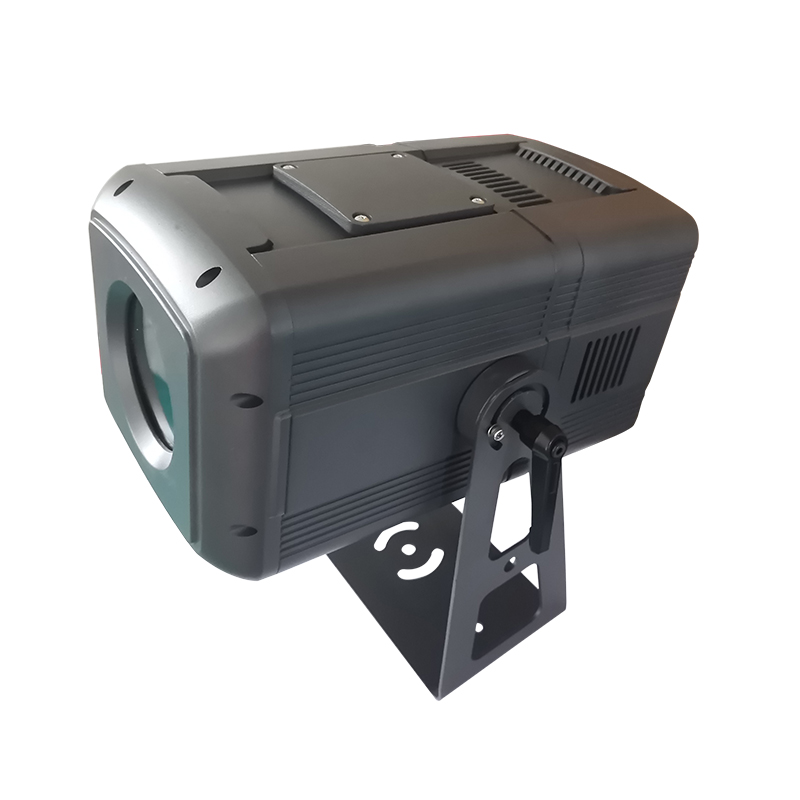

Nebula Mizar 200-W is a high cost effective outdoor logo projection light that is very suitable for outdoor gobo projection. It adopts unique optical system designed by our professional R&D team. The led logo projector light is equipped with a white 200W LED  with low power consumption and extremely clear output.

The logo projector outdoor has many remarkable optical features like 0-100% variable linear dimmer, motorized linear focus, synchronization strobe, pulse strobe and random strobe, etc. There are 4 inter-changeable rotating gobos in the outdoor gobo projector IP65 which are designed into easy and simple changing. Users can open the top access panel on the top of the led gobo logo projector by a screwdriver, take out the old image gobo, then insert a new one. For customers, the convenient design of our customized logo gobo projector makes them change various of gobos for different application easily.

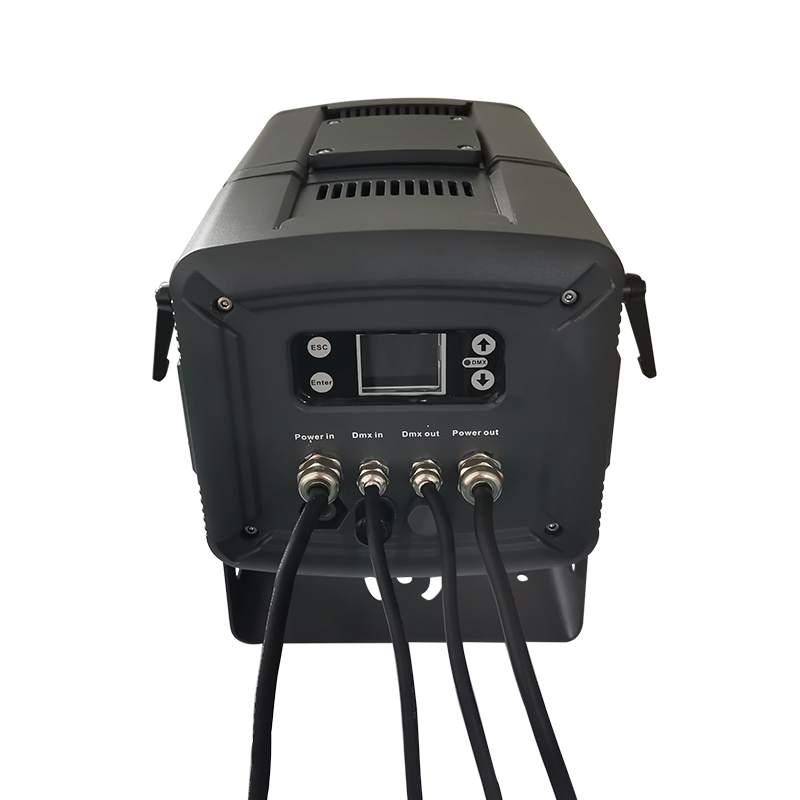

Mizar 200-W is a non-zoom exterior logo projector. The beam angle is 30°, 40°, 50°, 60°for freely selection. 4 control modes including DMX, auto, sound and program are built in. Our software engineer designed 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display, instead of configuring program by controller.

The gobo lighting projector is widely used in projection on ceilings, floors, streets walls and trees, etc. It could also used for advertising projection.

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE
    ● Light Source: 200W Color White LED
    ● Color Temperature: 8000K
    ● Average LED Life: 20,000 Hour

    POWER
    ● Input Voltage: 100-240VAC, 50/60Hz
    ● Power Consumption: 250W max. at full output

    OPTICAL SYSTEM
    ● Focus: Motorized linear focus
    ● Beam Angle: 30°, 40°, 50°, 60° selectable
    ● Strobe: 0-20Hz variable speed, synchronization, pulse and random strobe
    ● Dimmer: 0-100% variable linear dimming curves

    ROTATION GOBOS

    ● 4 inter-changeable glass gobos, Shake / Bi-directional rotating rainbow effect
    ● Glass gobo outside Φ27mm, insideΦ24mm

    CONTROL & CONNECTION
    ● DMX Channel: 7CH
    ● Control Mode: DMX, Auto, Sound, Program,W-DMX(Selectable)
    ● DMX Input: 3-pin Male signal cable
    ● DMX Output: 3-pin Female signal cable

    PHYSICAL
    ● Body Material: Aluminum
    ● Body Color: Black and Gray selectable, or customize other color
    ● IP Rate: IP65

    WEIGHT & DIMENSION
    ● Net Weight: 10.25kg
    ● Gross Weight:11.65kg
    ● Dimension: 206×327×329mm
    ● Package(1 in 1 Carton):295×500×445mm

    *The specification of Nebula 200W LED outdoor gobo projector in advertising lights subject to change without notice. All rights reserved.

    • Modularized component for convenient and easy removal
    • 4 acceptable customized gobos, simple and fast to change
    • Beam angle 30°, 40°, 50°, 60° selectable
    • 30 self-configured auto programs for convenient usage
    • Advanced cooling design to prevent overheat
    • Unique and fashionable outlook
    • Light weight and compact design
    • Waterproof Rate IP65

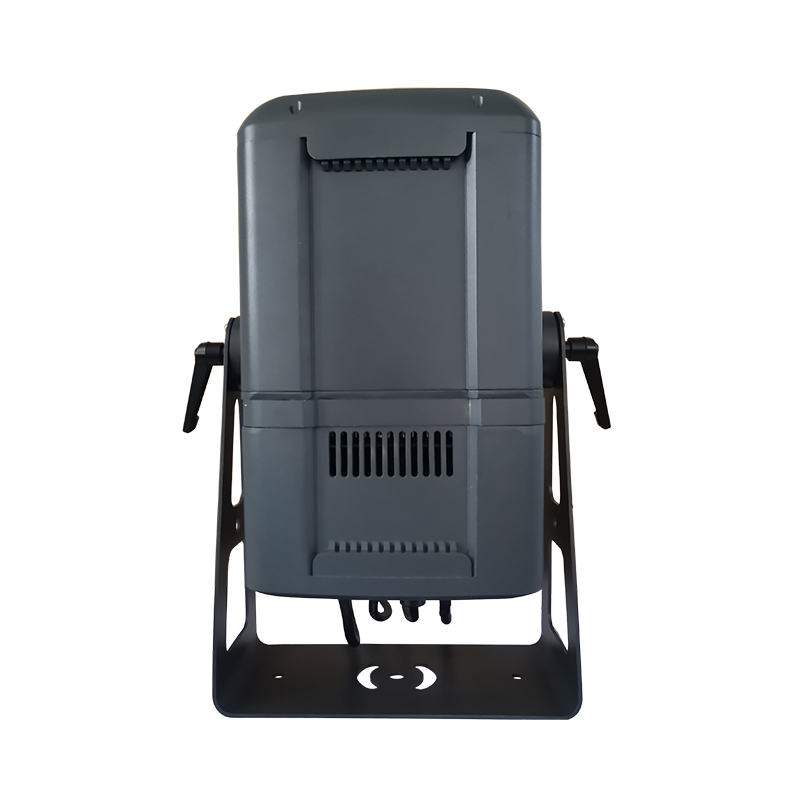

    From the dimensional drawing of logo projector outdoor 200w, the open panel on the top makes it convenient and simple to change image gobos. This kind of bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 200w outdoor logo projector light.

    The 200w led non-zoom gobo projector lights fit 4 changeable rotating gobos. We welcome custom image gobos from customers.

    Specification

    SOURCE
    ● Light Source: 200W Color White LED
    ● Color Temperature: 8000K
    ● Average LED Life: 20,000 Hour

    POWER
    ● Input Voltage: 100-240VAC, 50/60Hz
    ● Power Consumption: 250W max. at full output

    OPTICAL SYSTEM
    ● Focus: Motorized linear focus
    ● Beam Angle: 30°, 40°, 50°, 60° selectable
    ● Strobe: 0-20Hz variable speed, synchronization, pulse and random strobe
    ● Dimmer: 0-100% variable linear dimming curves

    ROTATION GOBOS

    ● 4 inter-changeable glass gobos, Shake / Bi-directional rotating rainbow effect
    ● Glass gobo outside Φ27mm, insideΦ24mm

    CONTROL & CONNECTION
    ● DMX Channel: 7CH
    ● Control Mode: DMX, Auto, Sound, Program,W-DMX(Selectable)
    ● DMX Input: 3-pin Male signal cable
    ● DMX Output: 3-pin Female signal cable

    PHYSICAL
    ● Body Material: Aluminum
    ● Body Color: Black and Gray selectable, or customize other color
    ● IP Rate: IP65

    WEIGHT & DIMENSION
    ● Net Weight: 10.25kg
    ● Gross Weight:11.65kg
    ● Dimension: 206×327×329mm
    ● Package(1 in 1 Carton):295×500×445mm

    *The specification of Nebula 200W LED outdoor gobo projector in advertising lights subject to change without notice. All rights reserved.

    Advantage
    • Modularized component for convenient and easy removal
    • 4 acceptable customized gobos, simple and fast to change
    • Beam angle 30°, 40°, 50°, 60° selectable
    • 30 self-configured auto programs for convenient usage
    • Advanced cooling design to prevent overheat
    • Unique and fashionable outlook
    • Light weight and compact design
    • Waterproof Rate IP65
    Dimensional Drawing

    From the dimensional drawing of logo projector outdoor 200w, the open panel on the top makes it convenient and simple to change image gobos. This kind of bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 200w outdoor logo projector light.

    Gobos

    The 200w led non-zoom gobo projector lights fit 4 changeable rotating gobos. We welcome custom image gobos from customers.
