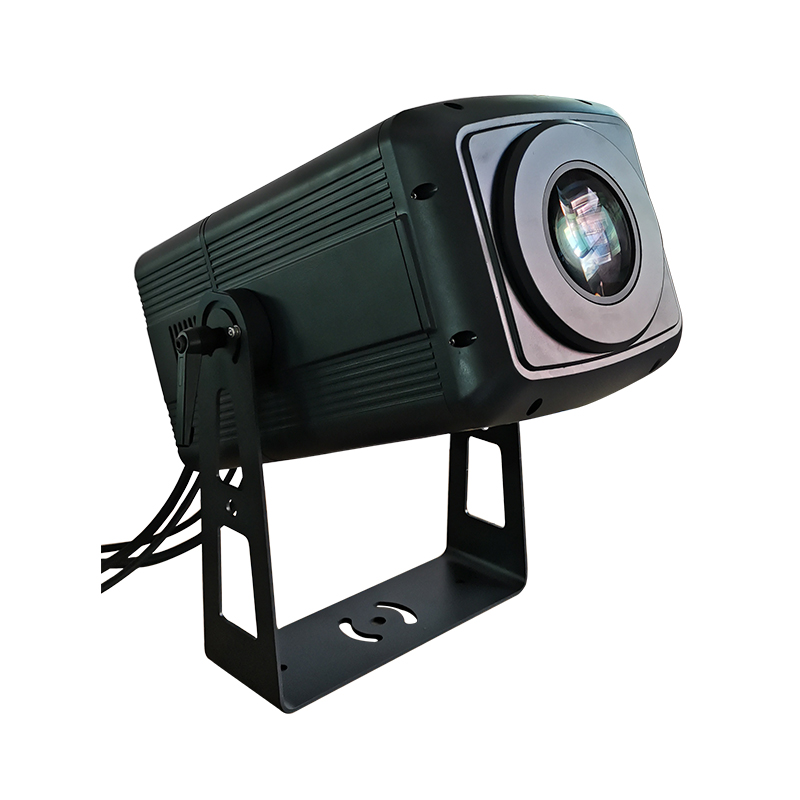

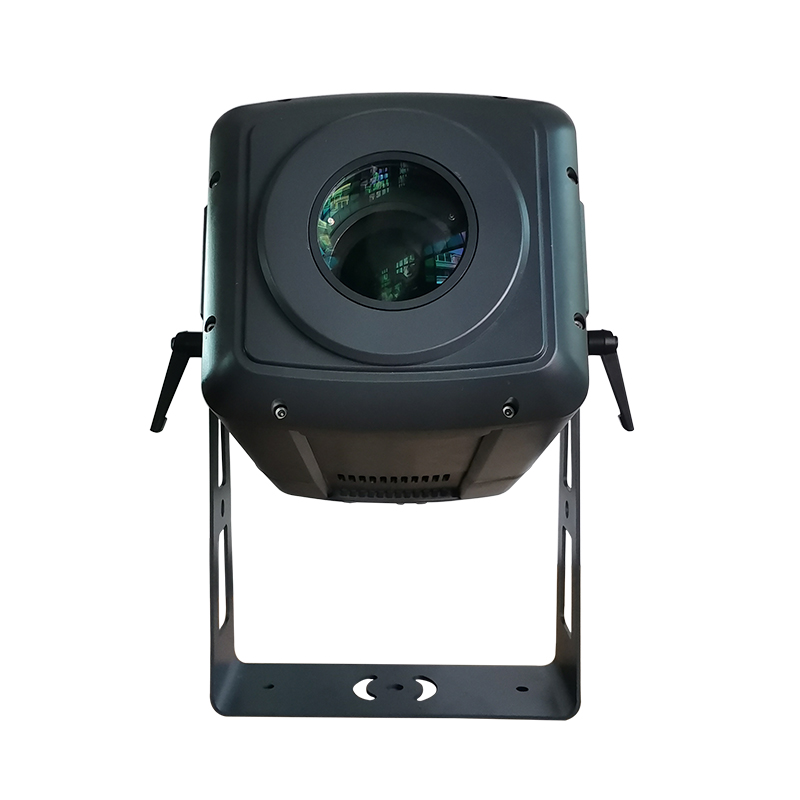

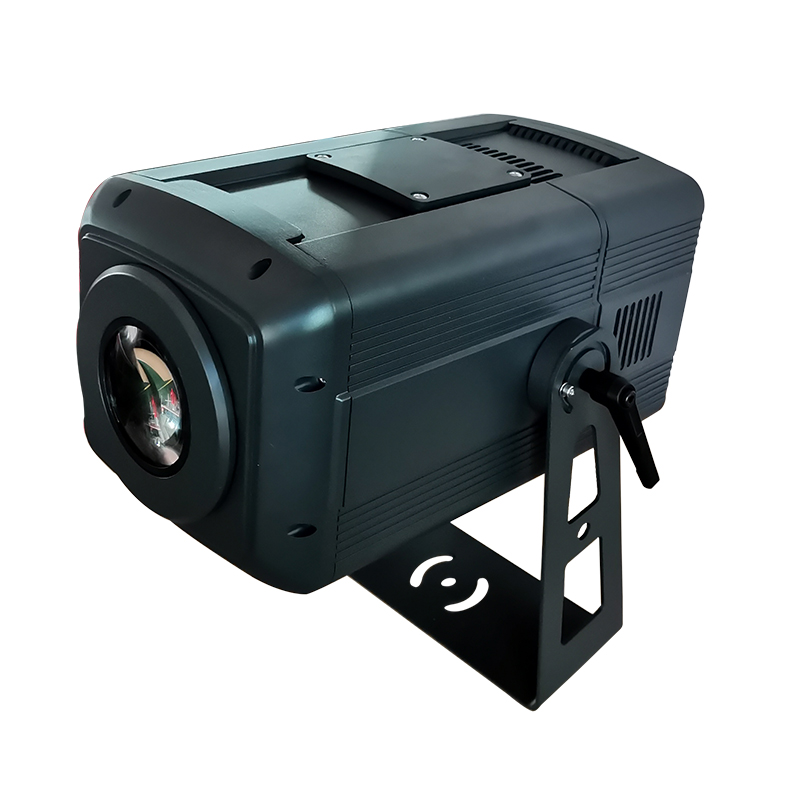

200W LED Zoom Outdoor Gobo Projector with IP65

Mizar 200-W-Z

Nebula Mizar 200-W-Z is twins of Mizar 100-W-Z outdoor advertising projectors for sale that can project a custom image anywhere. The outdoor advertising projector comes with a white 200W LED that allows to obtain optimal projections with low power consumption and clear output.

Nebula R&D team designs the 200W LED gobo light projector with modularized component for convenient and easy removal. It fits 7 dichoric colors with index, shake, bi-directional rotating rainbow effect, 7 changeable rotating gobos with shake, bi-directional rotating rainbow effect. A small access panel on the top of the LED projector for outdoor advertising is used for changing image gobos. User can open the top access panel by a screwdriver,take out the old image gobo, then insert a new one, very simple and easy. The convenient design of our waterproof IP65 200W LED rotating custom gobo projector makes customers arrange various of image easily to match different application scenarios. Another significant feature of our 200W powerful image project gobo projector is a linear motorized zoom from 5 degree to 50 degree. It is a outdoor image projector with motorized linear focus, 0-100% variable linear dimmer, synchronization strobe, pulse strobe and random strobe.

The advanced cooling system of our outdoor gobo image projector is installed in the rear of the fixture. Except adopting waterproof fans, there are four air ports all around, which can prevent overheat. Even though the rain or water flow in the outdoor LED image projector from the air ports, it will affect the normal operation of fixture.

There are 4 control modes including DMX, auto, sound and program, and 8 DMX channel in the outdoor Christmas image projector. Our software engineer designed 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display, instead of configuring program by controller.

Fully waterproof rate IP65 makes it suitable in outdoor application even though in rain, the exterior gobo projector always keep optimal status.The best value outdoor image projector can projected on ceilings, floors, walls and trees, etc. It is ideal for weddings, retail stores, promotional events, city beauty and so on.

As one of outdoor advertising projector suppliers in China, Nebula will provide the best outdoor image projector for you!

More

Online Inquiry

    GenderMaleFemale

    Close

    SOURCE
    ● Light Source: 200W Color White LED
    ● Color Temperature: 8000K
    ● Average LED Life: 20,000 Hour

    POWER
    ● Input Voltage: 100-240VAC, 50/60Hz
    ● Power Consumption: 250W max. at full output

    OPTICAL SYSTEM
    ● Zoom: 5°- 50° linear motorized
    ● Foucs: Motorized linear focus
    ● Strobe: 0-20Hz variable speed, synchronization, pulse and random strobe
    ● Dimmer: 0-100% variable linear dimming curves

    COLORS
    ● 7 Dichoric Colors plus open, Index / Shake / Bi-directional rotating rainbow effect

    ROTATION GOBOS
    ● 7 inter-changeable glass gobos plus open, Shake / Bi-directional rotating rainbow effect
    ● Glass gobo outside Φ16mm, insideΦ10mm

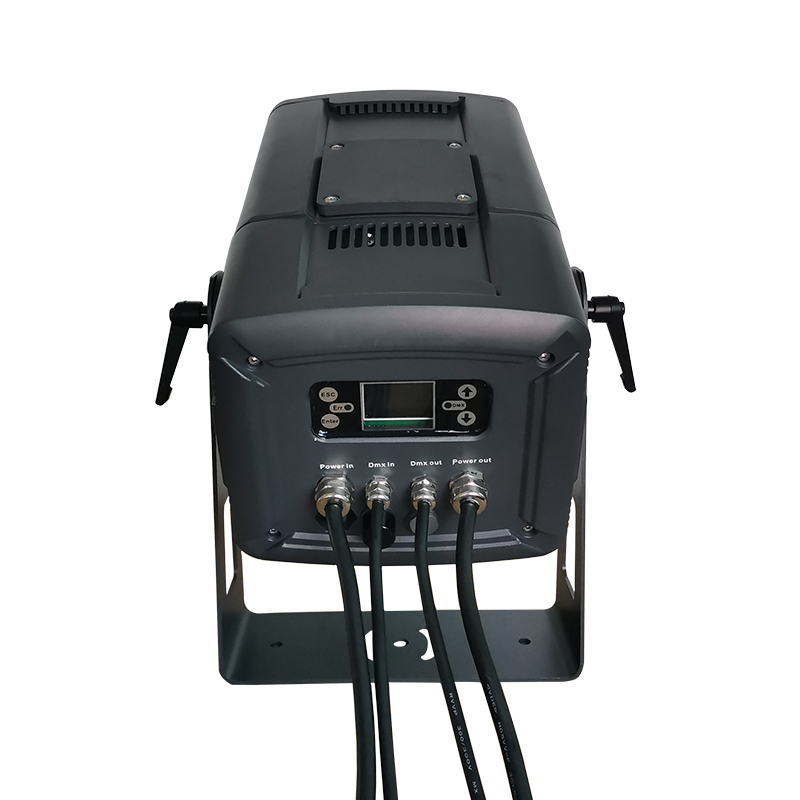

    CONTROL & CONNECTION
    ● DMX Channel: 8CH
    ● Control Mode: DMX, Auto, Sound, Program, W-DMX(Selectable)
    ● DMX Input: 3-pin Male signal cable
    ● DMX Output: 3-pin Female signal cable

    PHYSICAL
    ● Body Material: Aluminum
    ● IP Rate: IP65

    WEIGHT & DIMENSION
    ● Net Weight: 11.75kg
    ● Gross Weight: 13.6kg
    ● Dimension: 206×378×344
    ● Package(1 in1 carton): 290×545×435mm

    *The specification of Nebula 200 watt outdoor gobo projector subject to change without notice. All rights reserved.

    ● Modularized component for convenient and easy removal
    ● 7 acceptable customized gobos, simple and fast to change
    ● 7 dichoric colors with multiple effects
    ● 30 self-configured auto programs for convenient usage
    ● 5°- 50° linear motorized zoom
    ● Advanced cooling design to prevent overheat
    ● Unique and fashionable outlook
    ● Light weight and compact design
    ● Waterproof Rate IP65

    From the dimensional drawing of outdoor 200W rotating gobo projector, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 200W LED IP65 gobo projector.

    The 200 watt weatherproof led gobo projector fits 7 changeable rotating gobos and 7 colors. We welcome custom image gobos from customers.

    Specification

    SOURCE
    ● Light Source: 200W Color White LED
    ● Color Temperature: 8000K
    ● Average LED Life: 20,000 Hour

    POWER
    ● Input Voltage: 100-240VAC, 50/60Hz
    ● Power Consumption: 250W max. at full output

    OPTICAL SYSTEM
    ● Zoom: 5°- 50° linear motorized
    ● Foucs: Motorized linear focus
    ● Strobe: 0-20Hz variable speed, synchronization, pulse and random strobe
    ● Dimmer: 0-100% variable linear dimming curves

    COLORS
    ● 7 Dichoric Colors plus open, Index / Shake / Bi-directional rotating rainbow effect

    ROTATION GOBOS
    ● 7 inter-changeable glass gobos plus open, Shake / Bi-directional rotating rainbow effect
    ● Glass gobo outside Φ16mm, insideΦ10mm

    CONTROL & CONNECTION
    ● DMX Channel: 8CH
    ● Control Mode: DMX, Auto, Sound, Program, W-DMX(Selectable)
    ● DMX Input: 3-pin Male signal cable
    ● DMX Output: 3-pin Female signal cable

    PHYSICAL
    ● Body Material: Aluminum
    ● IP Rate: IP65

    WEIGHT & DIMENSION
    ● Net Weight: 11.75kg
    ● Gross Weight: 13.6kg
    ● Dimension: 206×378×344
    ● Package(1 in1 carton): 290×545×435mm

    *The specification of Nebula 200 watt outdoor gobo projector subject to change without notice. All rights reserved.

    Advantage

    ● Modularized component for convenient and easy removal
    ● 7 acceptable customized gobos, simple and fast to change
    ● 7 dichoric colors with multiple effects
    ● 30 self-configured auto programs for convenient usage
    ● 5°- 50° linear motorized zoom
    ● Advanced cooling design to prevent overheat
    ● Unique and fashionable outlook
    ● Light weight and compact design
    ● Waterproof Rate IP65

    Dimensional Drawing

    From the dimensional drawing of outdoor 200W rotating gobo projector, the bracket is stable and makes it freely to adjust angle. The fast lock can fix the angle of 200W LED IP65 gobo projector.

    Colors & Gobos

    The 200 watt weatherproof led gobo projector fits 7 changeable rotating gobos and 7 colors. We welcome custom image gobos from customers.
